This product is no longer stocked by Alloy

Eaton

M68184

True Online UPS, 1.5kVA, 2RU Rack/Tower Case 6x IEC outputs, C14 Input, USB/Serial/SNMP

The M68184, an Eaton EX Series Online UPS, is a dual format 2RU Rack/Tower, double conversion online UPS with automatic by-pass and power factor correction. This 1.5kVA rated UPS has 6x IEC C13 10amp power outlets.

Description

The M68184, an Eaton EX Series Online UPS, is a dual format 2RU Rack/Tower, double conversion online UPS with automatic by-pass and power factor correction. This 1.5kVA rated UPS has 6x IEC C13 10amp power outlets.

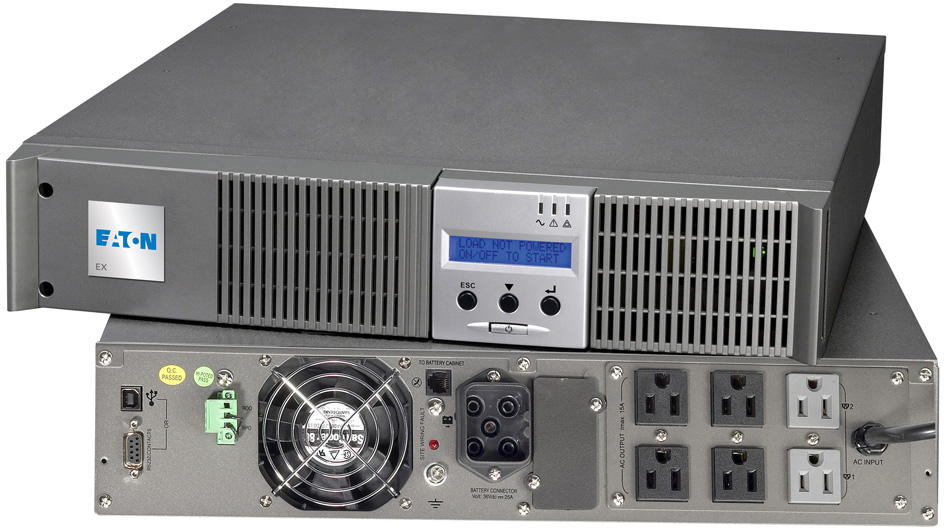

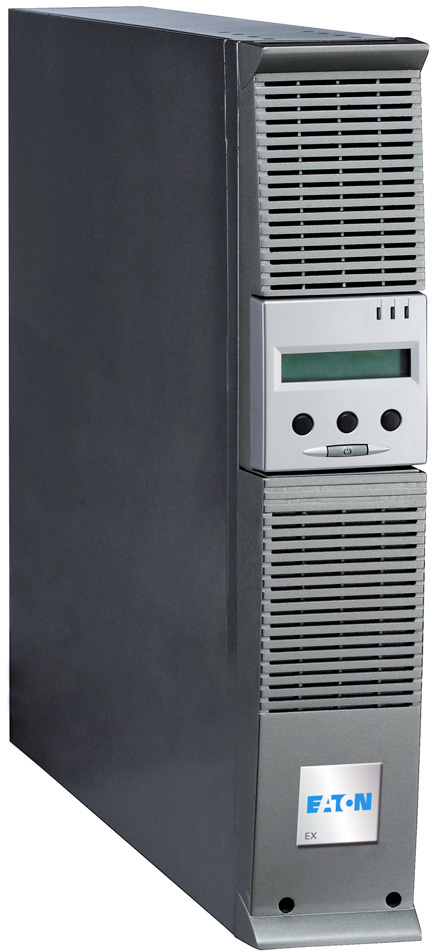

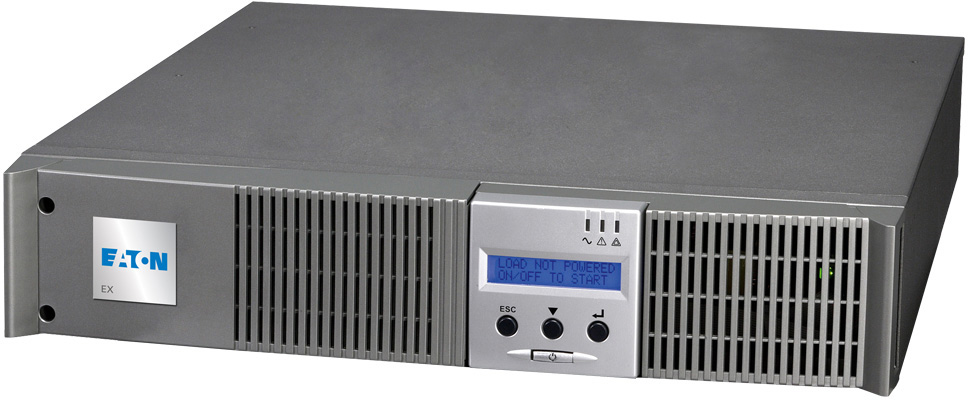

Eaton's M68184 is a True Online UPS with double conversion architecture for maximum availability and supporting automatic by-pass and power factor correction. This flexible online UPS is housed in a dual purpose 2RU Rack/Tower case, and delivers perfect sinewave output that guarantees consistent high level power quality. Rated for a 0.9 power factor, this UPS is compatible with high power factor loads. The UPS has a wide input voltage range (100 to 284 volts), ideal for the harshest electrical environments. Output sockets are individually controlled to provide load-shedding capability, maximising backup time and providing remote reboot and sequential start-up functionality. EXB External Battery Modules can be added to the MS8184 to provide long backup times. The M68184 has six IEC 10amp power output sockets and 1.5kVA/1.35kW battery capacity - capable of supporting connected devices for up to 13 minutes at 50% load from internal batteries only.

The M68184 is a model from Eaton's EX Online UPS Series. Models in the series offer up to 3kVA/2.7kW battery capacity. The EX Series offers unmatched deployment flexibility: all models have a dual purpose convertible rack/tower format, with 2RU and 3RU short-depth rack optimised model options (Note that 2.2/3kVA models require input cable 6E1619 to be ordered separately).The following features are supported in addition to those mentioned above: Hot swappable, field upgradable batteries make maintenance easier and extend the operational lifetime of the UPS; the optional HotSwap MBP (Maintenance By-Pass) Module allows the UPS to be replaced without interrupting the power supply. Comprehensive communications options include both serial and USB ports, Remote On/Off and Power Off (ROO/RPO) connectors and a rear panel slot for optional HTML/SNMP, ModBus/JBus and Relay Outputs Communication Cards. The UPS comes with a complete Eaton software suite supporting power management, auto-shutdown, and remote supervision operations. An intuitive front-panel LCD provides access to a wide range of measurements, alarms and set-up/control menus. With optional FlexPDU and HotSwap MBP Maintenance Bypass modules, EX Series UPS in deployed in 2RU or 3RU rackmount format models can be connected by Australian 3-pin, IEC sockets or terminal blocks for hardwiring.
Features
M68184: True Online 2RU Rack/Tower UPS with 1.5kVA battery capacity and 6x IEC power outlets
EX Series UPS: Online double-conversion topology assures maximum availability
Dual purpose 2RU and 3RU Rack/Tower cases
Wide input voltage range appropriate for the harshest electrical environments
Automatic by-pass and power factor correction
All models Rated for a 0.9 power factor
Individually controlled output sockets support prioritised load-shedding capability
Hot swappable, field upgradable internal batteries
EX Series models provide up to 18 minutes internal battery backup at 50% load
Add up to 4 EXB External Battery Modules for ultra long backup times
6 or 9 IEC power output sockets (model dependent)
Intuitive front-panel LCD displays measurements, alarms and set-up/control menus
Eaton power management/auto-shutdown software supplied
Serial and USB communications ports plus Remote On/Off and Power Off connectors
Wide range of optional items including Web/SNMP Management Card
