discontinued
Eaton
M68402
True Online UPS, 3kVA, 3RU Rack/Tower Case 9x IEC outputs, C20 Input, USB/Serial/SNMP
This product has been discontinued by Alloy.

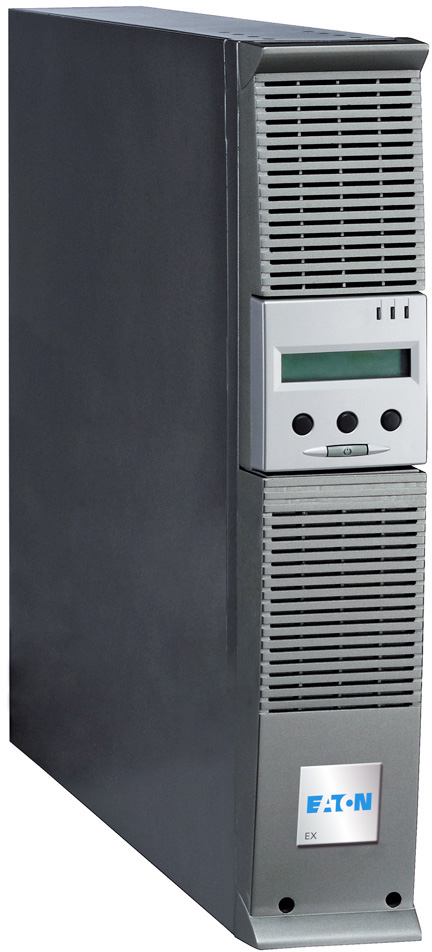

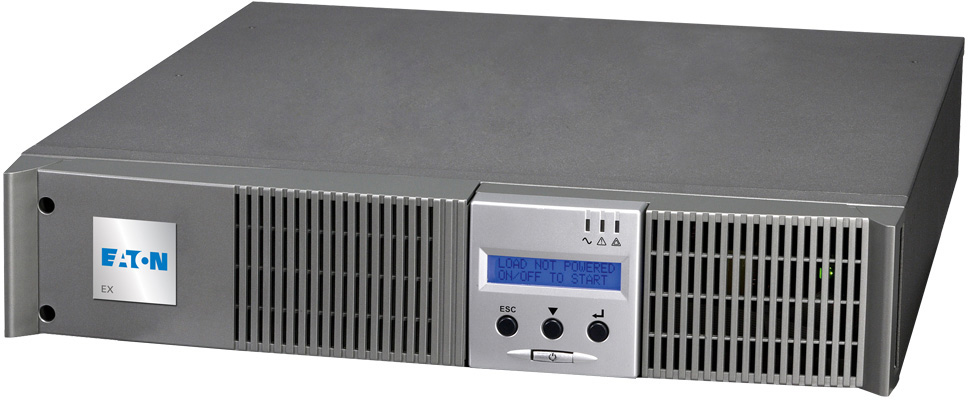

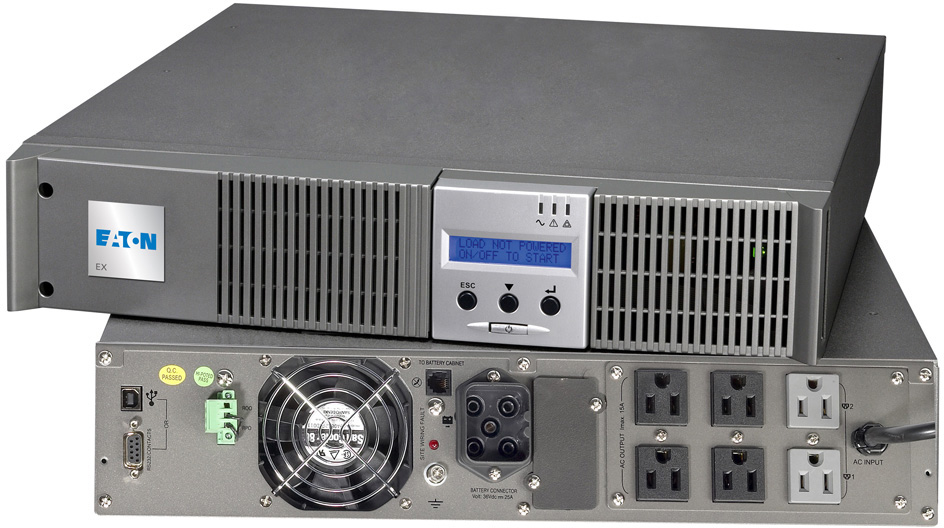

The M68402, an Eaton EX Series Online UPS, is a dual format 3RU Rack/Tower, double conversion online UPS with automatic by-pass and power factor correction. This 3kVA rated UPS has 8x IEC C13 10amp and 1x C19 16amp power outlets.
Eaton's M68402 is a True Online UPS with double conversion architecture for maximum availability and supporting automatic by-pass and power factor correction. This flexible online UPS is housed in a dual purpose 3RU Rack/Tower case (designed for short-depth network racks), and delivers perfect sinewave output that guarantees consistent high level power quality. Rated for a 0.9 power factor, this UPS is compatible with high power factor loads. The UPS has a wide input voltage range (100 to 284 volts), ideal for the harshest electrical environments. Output sockets are individually controlled to provide load-shedding capability, maximising backup time and providing remote reboot and sequential start-up functionality. EXB External Battery Modules can be added to the M68402 to provide long backup times. The M68402 has eight IEC 10amp and one IEC C19 16amp power output sockets and 3kVA/2.7kW battery capacity - capable of supporting connected devices for up to 15 minutes at 50% load from internal batteries only.
The M68402 is a model from Eaton's EX Online UPS Series. Models in the series offer up to 3kVA/2.7kW battery capacity. The EX Series offers unmatched deployment flexibility: all models have a dual purpose convertible rack/tower format, with 2RU and 3RU short-depth rack optimised model options (Note that 2.2/3kVA models require input cable 6E1619 to be ordered separately).The following features are supported in addition to those mentioned above: Hot swappable, field upgradable batteries make maintenance easier and extend the operational lifetime of the UPS; the optional HotSwap MBP (Maintenance By-Pass) Module allows the UPS to be replaced without interrupting the power supply. Comprehensive communications options include both serial and USB ports, Remote On/Off and Power Off (ROO/RPO) connectors and a rear panel slot for optional HTML/SNMP, ModBus/JBus and Relay Outputs Communication Cards. The UPS comes with a complete Eaton software suite supporting power management, auto-shutdown, and remote supervision operations. An intuitive front-panel LCD provides access to a wide range of measurements, alarms and set-up/control menus. With optional FlexPDU and HotSwap MBP Maintenance Bypass modules, EX Series UPS in deployed in 2RU or 3RU rackmount format models can be connected by Australian 3-pin, IEC sockets or terminal blocks for hardwiring.
The M68402 is a model from Eaton's EX Online UPS Series. Models in the series offer up to 3kVA/2.7kW battery capacity. The EX Series offers unmatched deployment flexibility: all models have a dual purpose convertible rack/tower format, with 2RU and 3RU short-depth rack optimised model options (Note that 2.2/3kVA models require input cable 6E1619 to be ordered separately).The following features are supported in addition to those mentioned above: Hot swappable, field upgradable batteries make maintenance easier and extend the operational lifetime of the UPS; the optional HotSwap MBP (Maintenance By-Pass) Module allows the UPS to be replaced without interrupting the power supply. Comprehensive communications options include both serial and USB ports, Remote On/Off and Power Off (ROO/RPO) connectors and a rear panel slot for optional HTML/SNMP, ModBus/JBus and Relay Outputs Communication Cards. The UPS comes with a complete Eaton software suite supporting power management, auto-shutdown, and remote supervision operations. An intuitive front-panel LCD provides access to a wide range of measurements, alarms and set-up/control menus. With optional FlexPDU and HotSwap MBP Maintenance Bypass modules, EX Series UPS in deployed in 2RU or 3RU rackmount format models can be connected by Australian 3-pin, IEC sockets or terminal blocks for hardwiring.
| • | M68402: True Online 3RU Rack/Tower UPS with 3kVA battery capacity and 9x IEC power outlets | |
| • | EX Series UPS: Online double-conversion topology assures maximum availability | |
| • | Dual purpose 2RU and 3RU Rack/Tower cases | |
| • | Wide input voltage range appropriate for the harshest electrical environments | |
| • | Automatic by-pass and power factor correction | |
| • | All models Rated for a 0.9 power factor | |
| • | Individually controlled output sockets support prioritised load-shedding capability | |
| • | Hot swappable, field upgradable internal batteries | |
| • | EX Series models provide up to 18 minutes internal battery backup at 50% load | |
| • | Add up to 4 EXB External Battery Modules for ultra long backup times | |
| • | 6 or 9 IEC power output sockets (model dependent) | |
| • | Intuitive front-panel LCD displays measurements, alarms and set-up/control menus | |
| • | Eaton power management/auto-shutdown software supplied | |
| • | Serial and USB communications ports plus Remote On/Off and Power Off connectors | |
| • | Wide range of optional items including Web/SNMP Management Card | |
| UPS Technology | |
| • | Online double conversion with automatic by-pass and power factor correction, pure sinewave output |
| Case Type | |
| • | Dual purpose 2RU Rack/Tower |
| • | 2.2kVA and 3KVA models also available in a 3RU versions for short-depth network racks |
| Items Supplied with UPS | |
| • | 2x 10A IEC output cords, retaining clips, USB Cable, Serial Cable, Software CD & Manual supplied |
| • | Rail Kit, Pedestals feet (except for 3RU models) and Philips head screwdriver are included as standard |
| • | Eaton Power Management software available for download |
| • | NOTE: 2.2/3kVA models require input cable 6E1619 (15A 3-pin to IEC15A, 2m) to be ordered separately |
| Case Format, Battery Capacity; Wattage Rating; Output Connections | |
| This model | |
| • | M68402: 3RU Rack/Tower; 3kVA/2.7kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| Other models in the Eaton EX Series UPS range | |
| • | M68182: 2RU Rack/Tower; 1kVA/900W; 6x IEC CI3 10amp power outputs for battery backup |
| • | M68184: 2RU Rack/Tower; 1.5kVA/1.35kW; 6x IEC C13 10amp power outputs for battery backup |
| • | M68401: 2RU Rack/Tower; 2.2kVA/1.98kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| • | M68400: 3RU Rack/Tower; 2.2kVA/1.98kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| • | M68403: 2RU Rack/Tower; 3kVA/2.7kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| • | M68402: 3RU XL Rack/Tower; 3kVA/2.7kW; 8x C13 10amp + 1x 1C19 6Amp IEC power outputs for battery backup |
| Electrical Specifications | |
| Input Voltage + Frequency Ranges (without Battery use) | |
| • | 1-1.5kVA Models: 100/120/140/160V to 284V - 40 to 70Hz |
| • | 2.2-3kVA Models: 100/120/160/184V to 284V - 40 to 70Hz |
| Output Voltage and Frequency | |
| • | 1-1.5kVA Models: 230V (adjustable to 200/208/220/240/250V), 50/60 Hz auto-select or frequency converter mode |
| • | 2.2-3kVA Models: 230V (adjustable to 200/208/220/240V), 50/60 Hz auto-select or frequency converter mode |
| Connections | |
| Input | |
| • | 1-1.5kVA Models: 6x IEC C13 (10A) sockets |
| • | 2.2-3kVA Models:1x IEC C20 (16A) |
| Outputs | |
| • | 1-1.5kVA Models: 1x IEC C14 (10A) socket |
| • | 2.2-3kVA Models: 8x IEC C13 (10A) sockets + 1 x IEC C19 (16A) socket |
| Remotely Controlled Powershare sockets | |
| • | 1-1.5kVA Models: 2 independent groups: 2 + 1x IEC C13 (10A) sockets |
| • | 2.2-3kVA Models:2 groups of 2 x IEC C13 (10A) |
| Adding Optional Extra Outputs | |
| • | HotSwap MBP models: 4x Aust 3-pin or 6x IEC 10A sockets or Terminal Blocks (HW version) |
| • | FlexPDU models: 6x Aust 3-pin or 12x IEC 10A sockets |
| Battery | |
| • | Battery Type: Sealed, replaceable, field upgradable lead acid |
| Battery Management: | |
| • | Automatic weekly test (period adjustable using LCD display or in software supplied) |
| • | Automatic recognition of EXP external battery units |
| • | Continuous maximisation of backup time |
| • | Deep discharge protection |
| Indicative Battery Runtime, 50%/70% load | |
| • | M68182: Internal Batteries only: 18/12mins; Internal + 1x EXB: 75/50mins; Internal + 4x EXB: 250/200mins |
| • | M68184: Internal Batteries only: 13/9mins; Internal + 1x EXB: 50/35mins; Internal + 4x EXB: 180/120mins |
| • | M68401: Internal Batteries only: 17/12mins; Internal + 1x EXB: 85/60mins; Internal + 4x EXB: 285/200mins |
| • | M68400: Internal Batteries only: 17/12mins; Internal + 1x EXB: 85/60mins; Internal + 4x EXB: 285/200mins |
| • | M68403: Internal Batteries only: 15/10mins; Internal + 1x EXB: 60/40mins; Internal + 4x EXB: 190/150mins |
| • | M68402: Internal Batteries only: 15/10mins; Internal + 1x EXB: 60/40mins; Internal + 4x EXB: 190/150mins |
| • | M68404: UPS with high speed charger, supplied without built-in batteries, for custom long backup configurations |
| User Interface | |
| Indicators and Display | |
| • | 3x LEDS |
| • | Adjustable multilingual LCD display for measurements, access to control and set-up menus |
| Communication ports | |
| • | 1x USB port + 1x RS232 serial port (paired) |
| • | 4x Relay Contacts |
| • | 1 x mini terminal block for remote ON/OFF and emergency stop (ROO/ROP) |
| Slot For Optional Communications Cards | |
| • | Web/SNMP Communications Card |
| • | NMC Minislot card or |
| • | NMC ModBus/JBus card or |
| • | MC Contacts/Serial |
| Power Management Software | |
| • | Eaton Power Management software, included on CD |
| Environmental | |
| • | Temperature, operating: 0ºC to +40ºC continuous |
| • | Audible noise: 45dBA |
| Dimensions/Weight | |
| • | M68182: 438x483x86 mm; 25Kg |
| • | M68184: 438x483x86 mm; 27.3Kg |
| • | M68401: 440x640x86 mm; 31Kg |
| • | M68400: 440x490x131 mm; 30kg |
| • | M68403 440x640x86 mm; 31kg |
| • | M68402: 440x490x131 mm; 30kg |
| • | M68404: 440x490x131 mm; 30kg |
| Standards Compliance | |
| Performance/Safety/EMC | |
| • | IEC/EN 62040-3 (VFI-SS-113) |
| • | IEC/EN 62040-1-1 |
| • | IEC/EN 60 950-1 (RD) |
| • | IEC/EN 62 040-2 C1 Class |
| Approvals | |
| • | 1 and 1.5kVA models: CE, TüV GS, CB report, cTüV-US, C-Tick |
| • | 2.2 and 3kVA models: CE, TüV, CB Report, UL, C-Tick |
| Warranty | |
| Standard Warranty | |
| • | Standard product exchange, including the battery |
| Extended Warranty Options, UPS and EXP External Battery Modules | |
| • | WP818: EX Series, 1 & 1.5kVA models Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP818-4: EX Series, 1 & 1.5kVA models Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP818-5: EX Series, 1 & 1.5kVA models Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP819: EX Series, EXB 1 & 1.5kVA modules Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP819-4: EX Series, EXB 1 & 1.5kVA modules Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP819-5: EX Series, EXB 1 & 1.5kVA modules Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP820: EX Series, 2.2kVA models Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP820-4: EX Series, 2.2kVA models Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP820-5: EX Series, 2.2kVA models Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP821: EX Series, 3kVA models Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP821-4: EX Series, 3kVA models Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP821-5: EX Series, 3kVA models Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP822: EX Series, EXB 2.2 & 3kVA modules Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP822-4: EX Series, EXB 2.2 & 3kVA modules Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
| • | WP822-5: EX Series, EXB 2.2 & 3kVA modules Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
| Optional Accessories | |
| • | Replacement Internal Batteries (call for details) |
| • | NMC Web/SNMP Communications Card |
| • | NMC ModBus/JBus Communications Card |
| • | MC Contacts/Serial Communications Card |
| • | M68441: EX 2U/3U Rackmount Kit |
| • | M68443: HotSwap Maintenance Bypass (MBP), Aust 3 pin outlets |
| • | M68433: HotSwap Maintenance Bypass (MBP), IEC outlets |
| • | M68434: HotSwap Maintenance Bypass (MBP), Hardwired |
| • | M68440: MBP cable kit for UPS connection <2kVA 10A |
