discontinued



Eaton
M68560AL
Line Interactive UPS, 1.5kVA/660W, Tower/Desk 8x IEC C13 outputs, 1x C14 Input, USB/Serial
This product has been discontinued by Alloy.

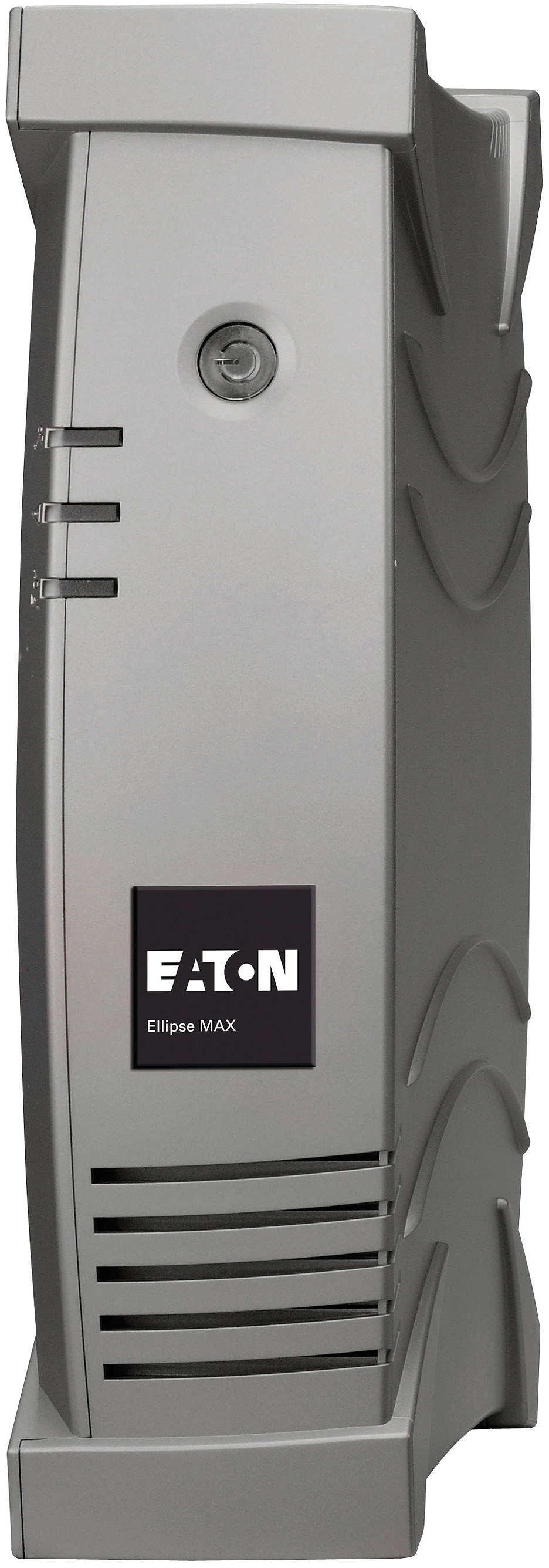

The M68560AL, an Eaton Ellipse MAX Series Line Interactive UPS, gives advanced power protection to workstations, small servers and office equipment. This 1.5kVA rated UPS with AVR has 8 IEC outlets; 4 for battery backup, and all 8 surge protected.

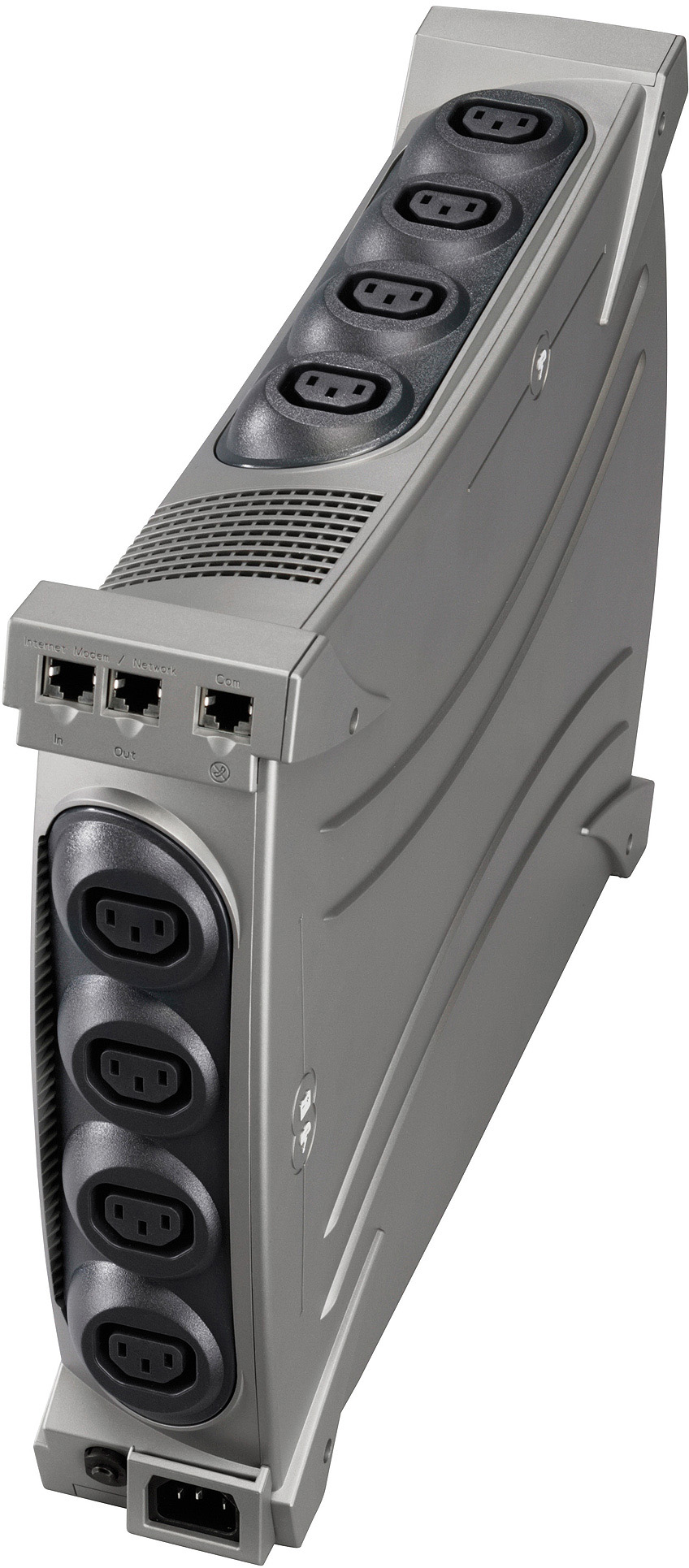

Eaton's M68560AL Line Interactive UPS provides effective power protection, even in disturbed electrical environments. Fluctuations in voltage are automatically corrected by the unit's Automatic Voltage Regulation (AVR) booster/fader device, which stabilises fluctuating power sources and preserves battery life. Connected equipment is also protected by a high performance, IEC 616431 standard compliant, integrated surge protection device. The M68560AL has eight surge protected IEC style power output sockets, four of which can be used for battery backup to keep equipment operating during a power failure or periods of sub-standard power supply. All eight power outputs provide surge protection. In addition, a combo In/Out RJ-45 port array provides 'back door' surge protection for broadband modems, phones lines and Fast Ethernet network datalines. With a battery capacity of 1.5kVA/900W, the M68560AL UPS will support connected devices such as computers for up to 12 minutes with a 50% load factor.
The M68560AL is a model from Eaton's Ellipse MAX Series of Modified Sinewave Line Interactive UPS. Models in the series offer up to 1.5kVA/900W battery capacity, and use sealed, maintenance free lead-acid batteries. In addition to the features mentioned above, all models in the range have a combo USB/Serial communications port. Power management/Auto-Shutdown software is supplied with all models, providing comprehensive power management functions and the ability to automatically close computer applications in the event of a power outage. Audible alarms and a LED indicator provide notification of a battery that is nearing end of life and needing replacement. Ellipse MAX models can be deployed as a tower UPS, in desktop mode under a computer monitor, or (with an optional Rack Kit) in a network rack cabinet.
The M68560AL is a model from Eaton's Ellipse MAX Series of Modified Sinewave Line Interactive UPS. Models in the series offer up to 1.5kVA/900W battery capacity, and use sealed, maintenance free lead-acid batteries. In addition to the features mentioned above, all models in the range have a combo USB/Serial communications port. Power management/Auto-Shutdown software is supplied with all models, providing comprehensive power management functions and the ability to automatically close computer applications in the event of a power outage. Audible alarms and a LED indicator provide notification of a battery that is nearing end of life and needing replacement. Ellipse MAX models can be deployed as a tower UPS, in desktop mode under a computer monitor, or (with an optional Rack Kit) in a network rack cabinet.
• | Model M68560AL: Line Interactive Modified Sinewave UPS with 1.5kVA battery capacity and 8x power outlets | |
• | Eaton Ellipse MAX Series UPS models provide up to 12 minutes battery backup at 50% of VA rated load | |
• | 4 or 8 power outlets - all with surge suppression and 3 or 4 for battery backup | |
• | IEC 61643-1compliant integrated surge protection device - total surge absorption: 525 Joules | |
• | Surge protection for phone, Fax, modem, Internet or Ethernet | |
• | All models support Automatic Voltage Regulation (AVR) to stabilise fluctuating power sources | |
• | Combo UPS/Serial comms port and Power Management/Auto-Shutdown software supplied | |
• | Easy-to-replace battery helps to extend UPS service life | |
• | LED indicators and audible alarms display Battery status | |
• | Durable, compact Tower/Desktop case with 2RU rack mount options |
UPS Technology | |
• | Line Interactive, modified sinewave, with Automatic Voltage Regulation (AVR) |
Battery Capacity/Wattage Rating/Output Connections | |
This model | |
• | M68560AL: 1.5kVA/900W / 8x IEC - 4 battery backup, all surge protected |
Other models in the Eaton Ellipse MAX Line Interactive UPS Series | |
• | M68548AL: 600VA/360W / 4x IEC - 3 battery backup, all surge protected |
• | M68552AL: 850VA/550W / 8x IEC - 4 battery backup, all surge protected |
• | M68556AL: 1.1kVA/600W / 8x IEC - 4 battery backup, all surge protected |
Input Voltage | |
• | 165V - 285V (adjustable to 150V - 285V) |
Output Voltage | |
• | 230V (adjustable to 220V, 230V, 240V) |
Frequency | |
• | 50-60Hz auto select |
Circuit Breaker: With reset | |
Battery | |
• | Replaceable battery: compact sealed lead acid |
• | Battery charger: Operates when the UPS is under power |
• | Battery management: Battery test, Cold start (no mains), Deep discharge protection |
• | Battery replacement indicators: LED + audible alarm |
Indicative Battery Runtime | |
• | M68548AL: Max. Backup rating @ 50% VA rated load: 12 mins; @ 70% load: 7 mins |
• | M68552AL: Max. Backup rating @ 50% VA rated load: 18 mins; @ 70% load: 12 mins |
• | M68556AL: Max. Backup rating @ 50% VA rated load: 15 mins; @ 70% load: 9 mins |
• | M68560AL: Max. Backup rating @ 50% VA rated load: 12 mins; @ 70% load: 7 mins |
Surge Protection | |
• | Tel/Fax/Modem/Internet and 100Base-TX Fast Ethernet |
• | Integral surge protection device to IEC 61643-1 |
• | Total surge absorption: 525 Joules |
Adaptor Cables | |
• | 2x IEC to Australian 3-pin leads supplied with UPS |
Communication | |
• | Combined USB and serial port (communications cables supplied) |
• | Eaton power management and auto-shutdown software supplied |
Standards Compliance | |
• | Safety: IEC/EN 62040-1-1, CB Report, CE mark |
• | EMC: IEC / EN 62040-2 C1, C-Tick |
• | Surge protection: IEC 61643-1 |
Dimensions and Weight | |
• | M68548AL: 314x82x301 mm; 5.75Kg |
• | M68552AL: 314x82x410 mm; 10.2Kg |
• | M68556AL: 314x82x410 mm; 10.2Kg |
• | M68560AL: 314x82x410 mm; 10.2Kg |
Warranty | |
Standard Warranty | |
• | Two-year limited warranty |
Extended Warranty Options | |
• | WP813: Ellipse MAX Series Warranty+, 3rd year warranty uplift, & replacement UPS delivery (conditions apply) |
• | WP813-4: Ellipse MAX Series Warranty+, 4th year warranty uplift, & replacement UPS delivery (conditions apply) |
• | WP813-5: Ellipse MAX Series Warranty+, 5th year warranty uplift, & replacement UPS delivery (conditions apply) |
Optional Accessories | |
• | Replacement Batteries (call for details) |
• | Ellipse MAX 2RU Rack Kit (P/no M68561) |
