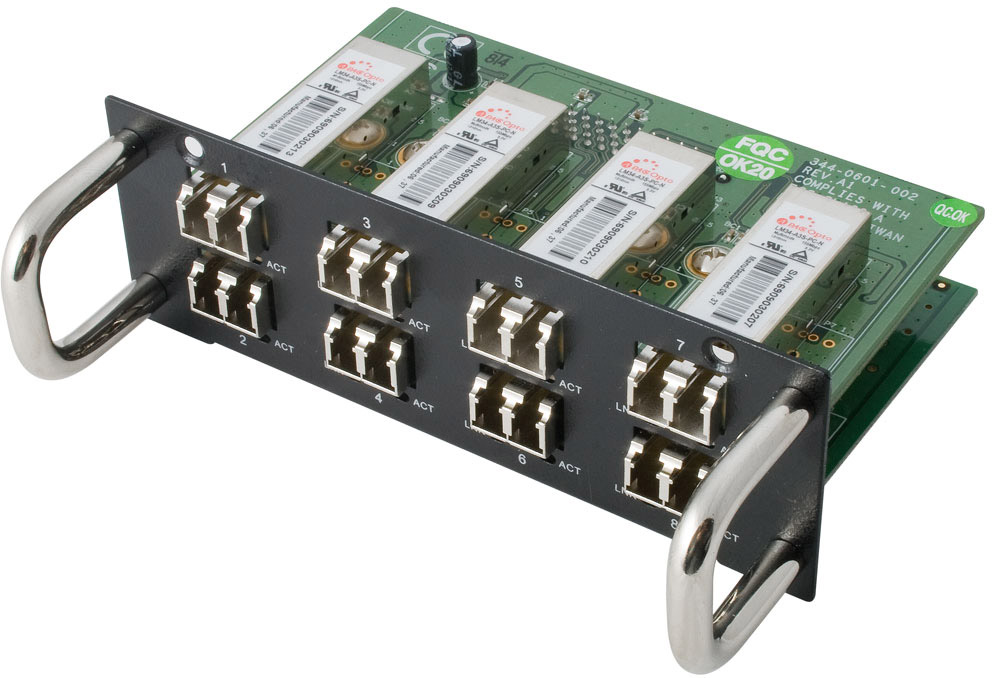

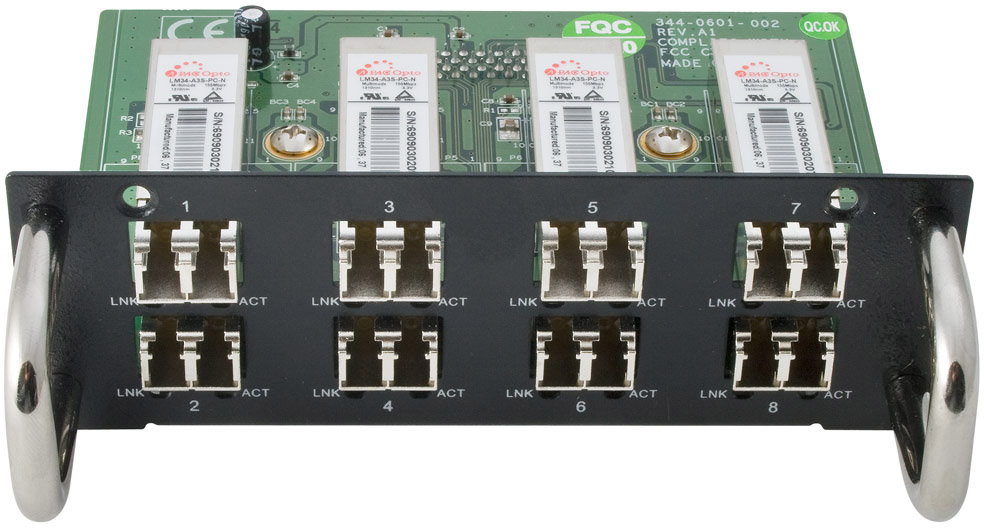

The M8LC is an 8 Port 100Base-FX fibre Network Port Module with LC connectors, designed for installation in any of the three Port Bays on an MS888G2 Series switch. The Port Module is field upgradable, or can be supplied pre-installed in an MS888G2.

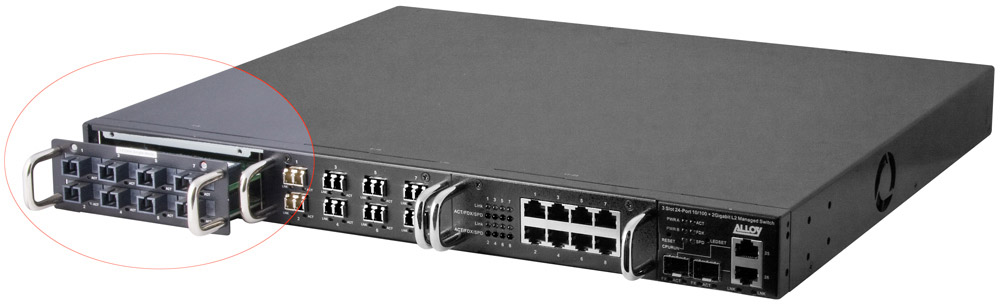

The module can be supplied pre-installed in any MS888G2 Series switch. Up to three M8LC modules can be installed in any of the three available front panel mounted Network Port Module Bays in an MS888G2 Chassis.
The M8LC, in common with all MS888G2 Series copper, multimode fibre, singlemode fibre, or WDM Network Port Modules, is a 'hot swappable' device - easy to upgrade in the field with no system downtime. Any mix of Network Port Modules can be installed in an MS888G2 Series switch to achieve up to 24x fibre or copper ports per switch, and ensuring high levels of flexibility and scalability.
|•||8x 100Base-FX switched ports with LC fibre connectors|
|•||2Kms maximum range over multimode optical fibre cable|
|•||Models with LC, ST and MT-RJ fibre connectors available|
|•||Hot swappable module - no system downtime, field upgradable|
|•||Supplied pre-installed with an MS888G2 Series Switch, or field upgradable for scalability and flexibility|
|•||Any mix of copper or multimode/singlemode/WDM fibre Port Modules can be installed per switch|
|Port Interface Specifications|
|•||Number of Switched Ports: 8x|
|•||Port Type: 100Base-FX 100Mbps Fast Ethernet|
|•||Connector Type: LC|
|•||Range: 2 kilometres maximum|
|Cable Type(s) Supported|
|•||50.125, 62.5/125 or 100/140 micron multimode optical fibre|
|•||Install in any MS888G2 Series Switch front panel Network Port Module Bay|
|•||'Hot Swappable' device|
|•||Maximum port density: 24 (3 Modules)|
