ALLOY
M8SC.S05
Fast Ethernet Fibre Network Port Module 8x 100Base-FX (SC), 5Km; for MS888G2 Series
This product has been discontinued by Alloy.

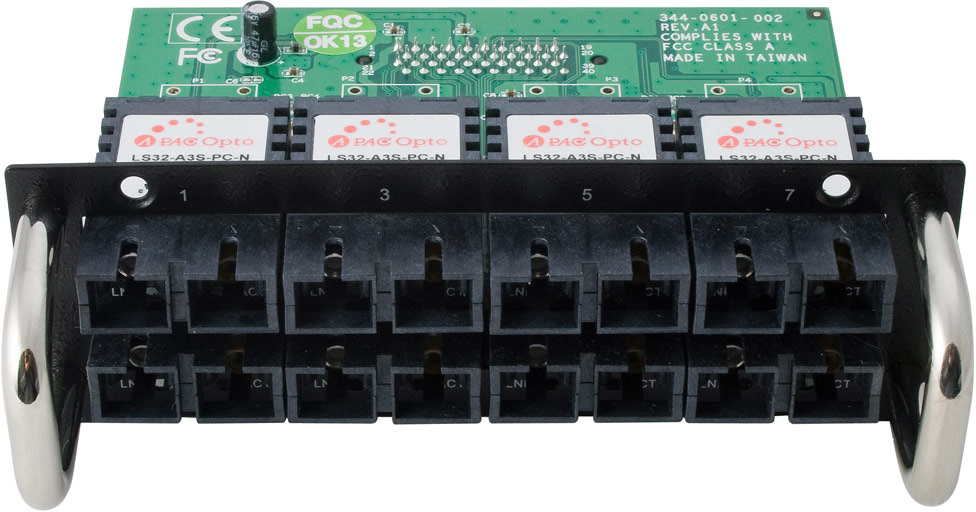

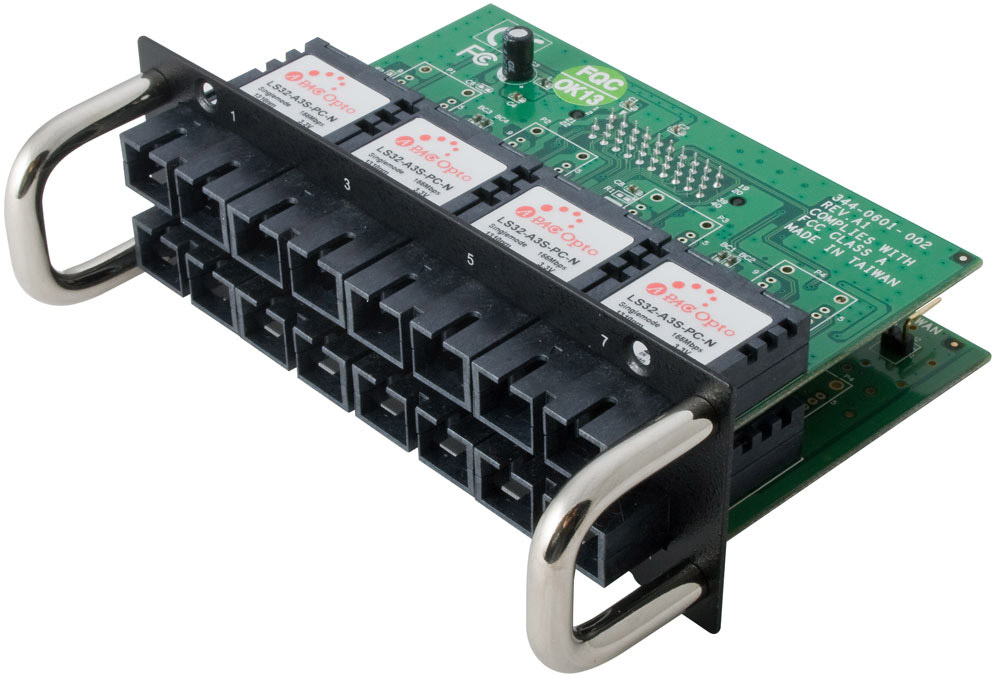

The M8SC.S05 is an 8 Port 100Base-FX singlemode fibre Network Port Module with SC connectors. Install in any of the three Port Bays on an MS888G2 Series switch. The Port Module is field upgradable, or can be supplied pre-installed in an MS888G2.
The M8SC.S05 Network Port Module has 8x 100Base-FX switched ports with SC type connectors, each capable of supporting singlemode fibre optic cable at up to 5 kilometres range.

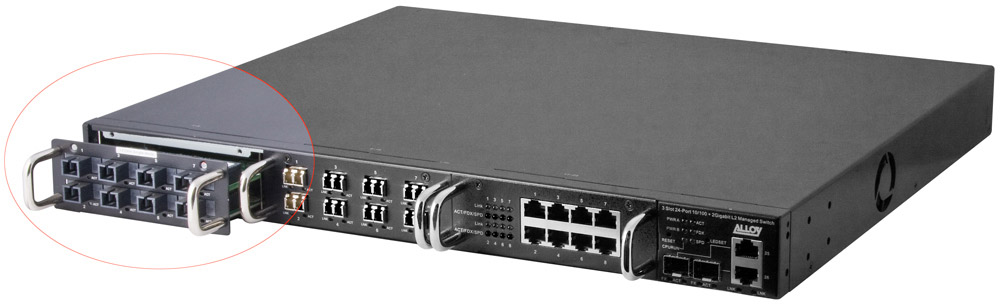

The module can be supplied pre-installed in any MS888G2 Series switch. Up to three M8SC.S05 modules can be installed in any of the three available front panel mounted Network Port Module Bays in an MS888G2 Chassis.
The M8SC.S05, in common with all MS888G2 Series copper, multimode fibre, singlemode fibre, or WDM Network Port Modules, is a 'hot swappable' device - easy to upgrade in the field with no system downtime. Any mix of Network Port Modules can be installed in an MS888G2 Series switch to achieve up to 24x fibre or copper ports per switch, and ensuring high levels of flexibility and scalability.
The module can be supplied pre-installed in any MS888G2 Series switch. Up to three M8SC.S05 modules can be installed in any of the three available front panel mounted Network Port Module Bays in an MS888G2 Chassis.
The M8SC.S05, in common with all MS888G2 Series copper, multimode fibre, singlemode fibre, or WDM Network Port Modules, is a 'hot swappable' device - easy to upgrade in the field with no system downtime. Any mix of Network Port Modules can be installed in an MS888G2 Series switch to achieve up to 24x fibre or copper ports per switch, and ensuring high levels of flexibility and scalability.
| • | 8x 100Base-FX switched ports with SC fibre connectors | |
| • | 5Kms maximum range over singlemode optical fibre cable | |
| • | Models with 20 and 60 kilometres range available | |
| • | Hot swappable module - no system downtime, field upgradable | |
| • | Supplied pre-installed with an MS888G2 Series Switch, or field upgradable for scalability and flexibility | |
| • | Any mix of copper or multimode/singlemode/WDM fibre Port Modules can be installed per switch | |
| Port Interface Specifications | |
| • | Number of Switched Ports: 8x |
| • | Port Type: 100Base-FX 100Mbps Fast Ethernet |
| • | Connector Type: SC |
| • | Range: 5 kilometres maximum |
| Cable Type(s) Supported | |
| • | 8.3/125, 8.7/125 or 10/125 micron singlemode optical fibre |
| Installation | |
| • | Install in any MS888G2 Series Switch front panel Network Port Module Bay |
| • | 'Hot Swappable' device |
| • | Maximum port density: 24 (3 Modules) |
