This product is no longer stocked by Alloy

ALLOY

M8WDM3.S40

Fast Ethernet WDM Fibre Network Port Module 8x 100Base-FX (SC), 40Km; for MS888G2 Series

The M8WDM3.S40 is an 8 Port 100Base-FX WDM fibre Network Port Module with SC connectors. Install in any of the three Port Bays on an MS888G2 Series switch. The Port Module is field upgradable, or can be supplied pre-installed in an MS888G2.

Description

The M8WDM3.S40 is an 8 Port 100Base-FX WDM fibre Network Port Module with SC connectors. Install in any of the three Port Bays on an MS888G2 Series switch. The Port Module is field upgradable, or can be supplied pre-installed in an MS888G2.

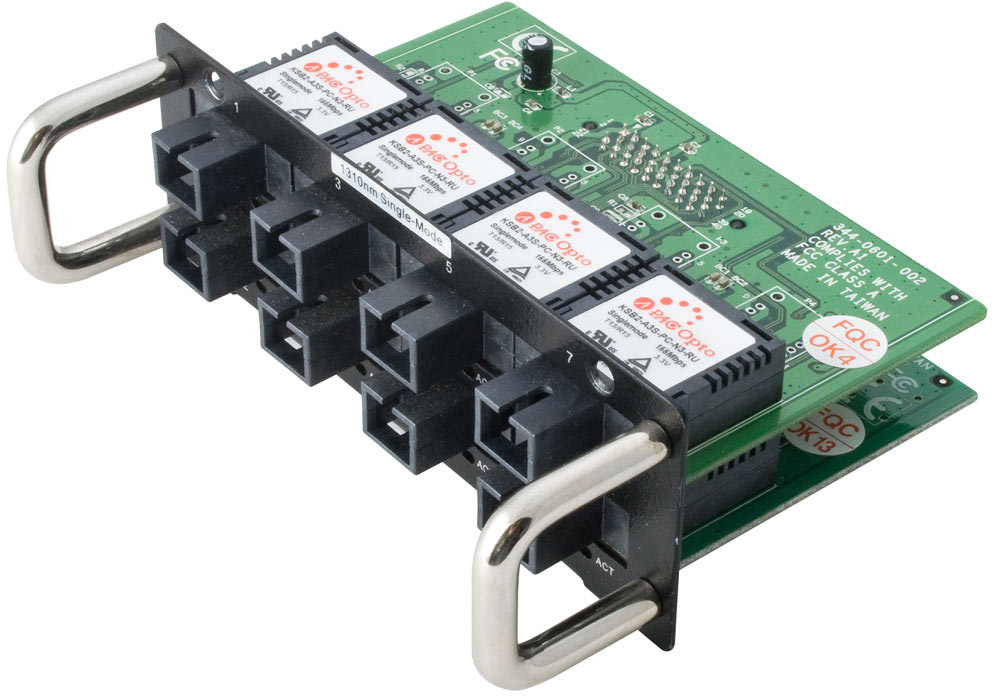

The M8WDM3.S40 Network Port Module has 8x 100Base-FX switched ports with SC type connectors, each capable of supporting singlecore/singlemode fibre optic cable at up to 40 kilometres range. With both send and recieve datastreams multiplexed over a single fibre core (utilising 1310nm and 1550nm wavelengths), this WDM Network Port Module is an ideal solution where fibre cable costs need to be minimised, or to avoid the high cost of pulling more cable where existing ducted fibre cable is already fully utilised and more capacity is required.

The M8WDM3.S40 must be used with it's sister device, the M8WDM5.S40, at the other end of the network link, or an alternative transposed 1310nm/1550nm device such as a WDM Media Converter (see Alloy's Media Converter range on this website).

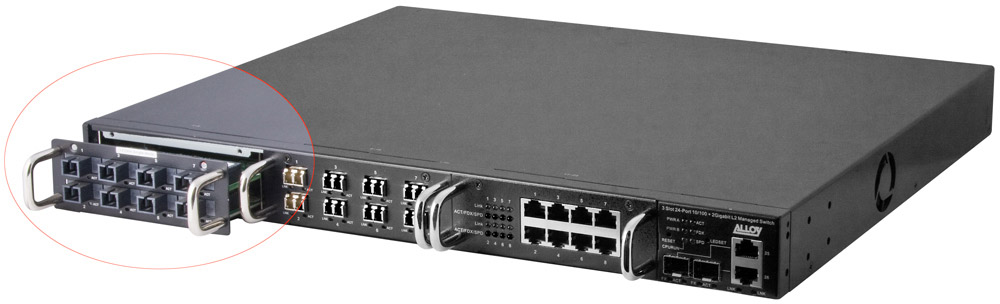

The Module can be supplied pre-installed in any MS888G2 Series switch. Up to three M8WDM3.S40 modules can be installed in any of the three available front panel mounted Network Port Module Bays in an MS888G2 Chassis.

The M8WDM3.S40, in common with all MS888G2 Series copper, multimode fibre, singlemode fibre, or WDM Network Port Modules, is a 'hot swappable' device - easy to upgrade in the field with no system downtime. Any mix of Network Port Modules can be installed in an MS888G2 Series switch to achieve up to 24x fibre or copper ports per switch, and ensuring high levels of flexibility and scalability.
Features

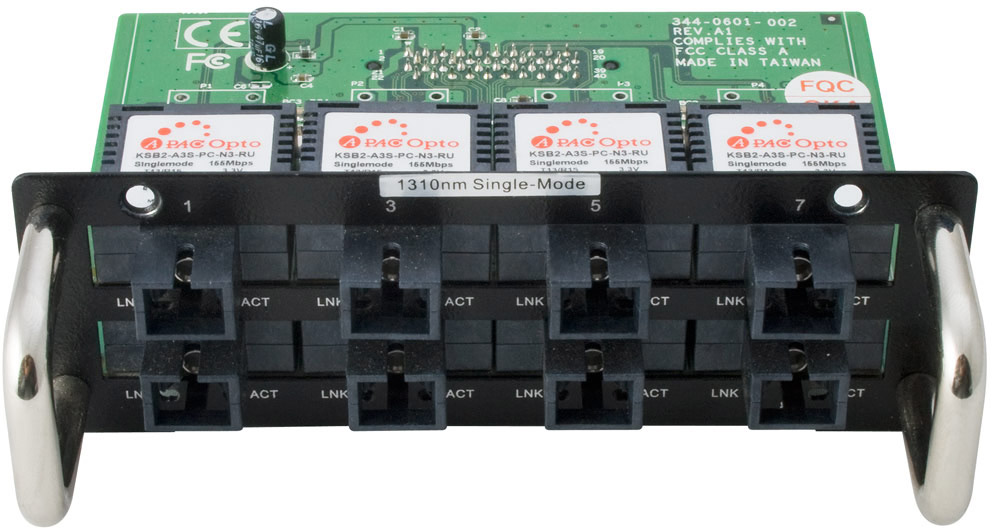

8x 100Base-FX switched ports with SC fibre connectors
40Kms maximum range over WDM singlecore/singlemode optical fibre cable
Use with sister model M8WDM5.S40 at other end of the cable segment
WDM models with 20 and 60 kilometres range also available
Hot swappable module - no system downtime, field upgradable
Supplied pre-installed with an MS888G2 Series Switch, or field upgradable for scalability and flexibility
Any mix of copper or multimode/singlemode/WDM fibre Port Modules can be installed per switch
Avoid pulling more cable where all cores are already utilised
