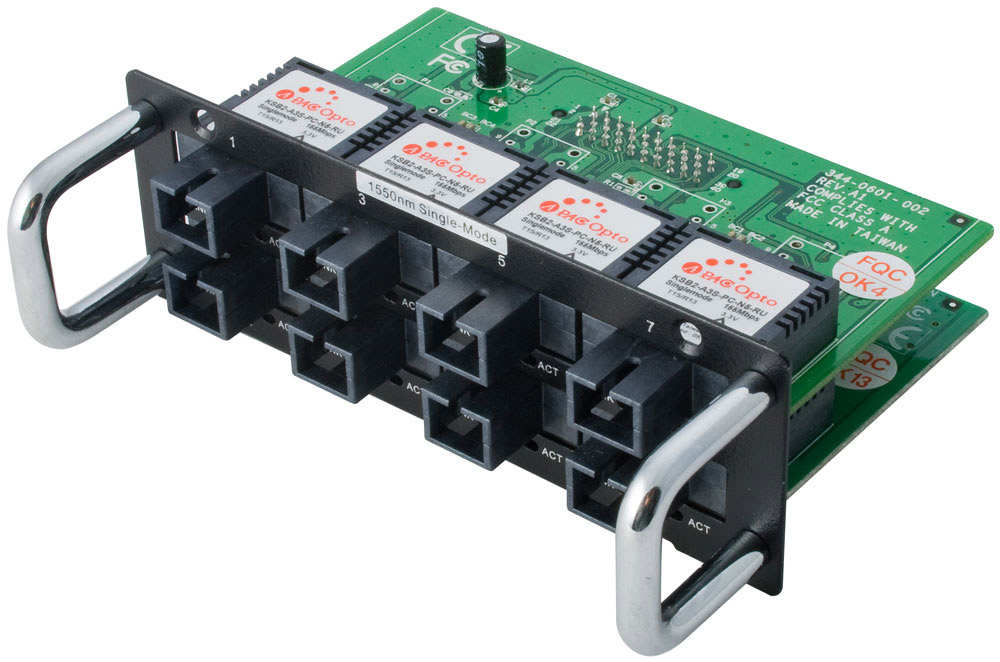

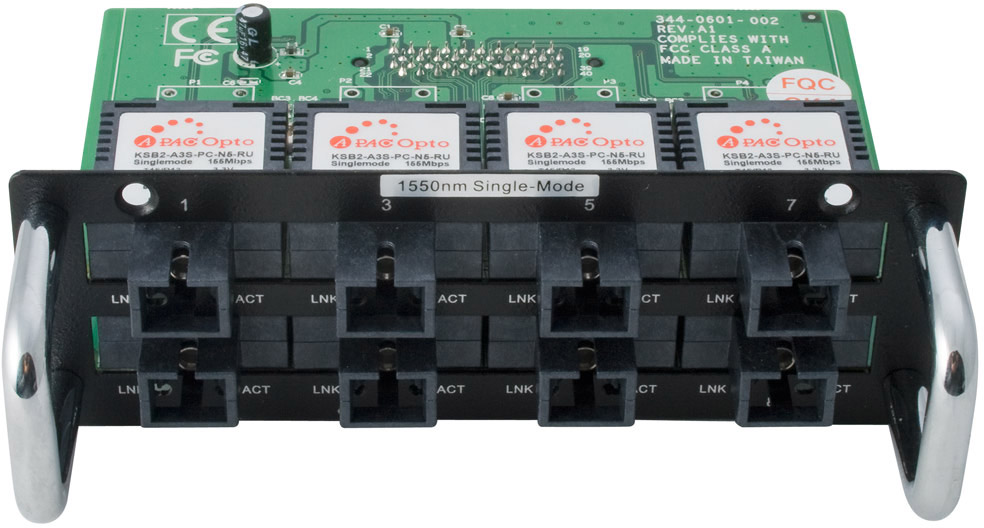

The M8WDM5.S40 is an 8 Port 100Base-FX WDM fibre Network Port Module with SC connectors. Install in any of the three Port Bays on an MS888G2 Series switch. The Port Module is field upgradable, or can be supplied pre-installed in an MS888G2.
The M8WDM5.S40 must be used with it's sister device, the M8WDM3.S40, at the other end of the network link, or an alternative transposed 1310nm/1550nm device such as a WDM Media Converter (see Alloy's Media Converter range on this website).

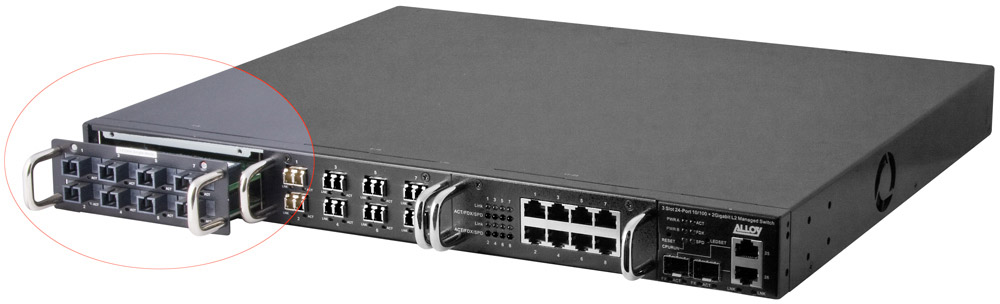

The module can be supplied pre-installed in any MS888G2 Series switch. Up to three M8WDM5.S40 modules can be installed in any of the three available front panel mounted Network Port Module Bays in an MS888G2 Chassis.
The M8WDM5.S40, in common with all MS888G2 Series copper, multimode fibre, singlemode fibre, or WDM Network Port Modules, is a 'hot swappable' device - easy to upgrade in the field with no system downtime. Any mix of Network Port Modules can be installed in an MS888G2 Series switch to achieve up to 24x fibre or copper ports per switch, and ensuring high levels of flexibility and scalability.
|•||8x 100Base-FX switched ports with SC fibre connectors|
|•||40Kms maximum range over WDM singlecore/singlemode optical fibre cable|
|•||Use with sister model M8WDM3.S40 at other end of the cable segment|
|•||WDM models with 20 and 60 kilometres range also available|
|•||Hot swappable module - no system downtime, field upgradable|
|•||Supplied pre-installed with an MS888G2 Series Switch, or field upgradable for scalability and flexibility|
|•||Any mix of copper or multimode/singlemode/WDM fibre Port Modules can be installed per switch|
|•||Avoid pulling more cable where all cores are already utilised|
|Port Interface Specifications|
|•||Number of Switched Ports: 8x|
|•||Port Type: 100Base-FX 100Mbps Fast Ethernet|
|•||Connector Type: SC|
|•||Range: 40 kilometres maximum|
|WDM Multiplex Wavelengths|
|•||M8WDM5.xxx models: Transmit on 1550nm, Receive on 1310nm|
|•||M8WDM3.xxx models: Transmit on 1310nm, Receive on 1550nm|
|Cable Type(s) Supported|
|•||8.3/125, 8.7/125 or 10/125 micron singlemode optical fibre|
|•||Number of fibre cores used: 1|
|•||Install in any MS888G2 Series Switch front panel Network Port Module Bay|
|•||'Hot Swappable' device|
|•||Maximum port density: 24 (3 Modules)|
