Media Converter Module for MCR12 Series, 100Base-TX to 100Base-BX WDM, 1310nm, 60Km
This product has been discontinued by Alloy.

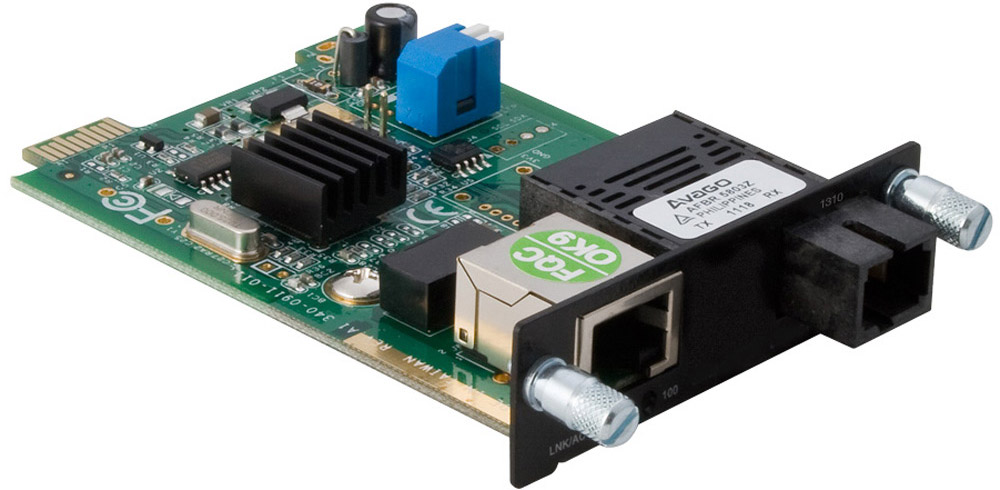

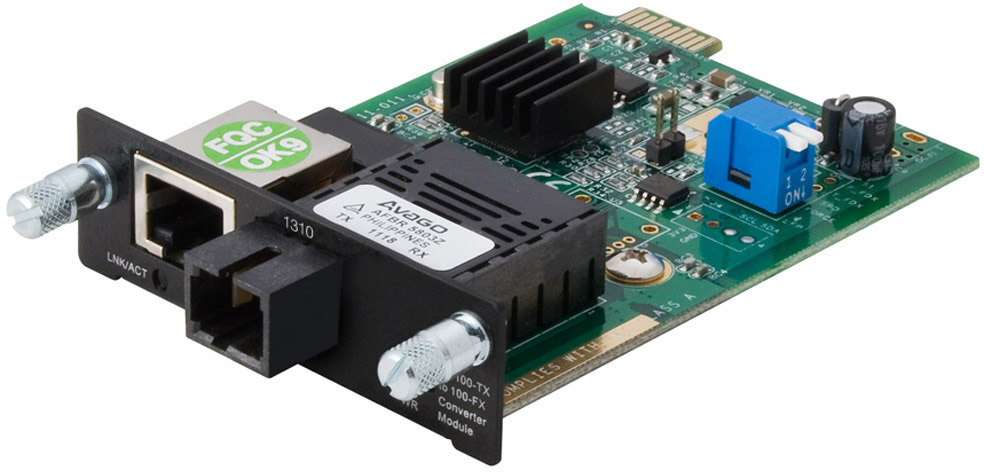

An MFCR100 Series Fast Ethernet Media Converter Module, MFCR100BS3.60 can be installed in an Alloy MCR12 Series Managed Media Converter Chassis, and has a 100Base-BX WDM 1310nm TX singlemode/singlecore SC port. Fibre cable range up to 60Km.

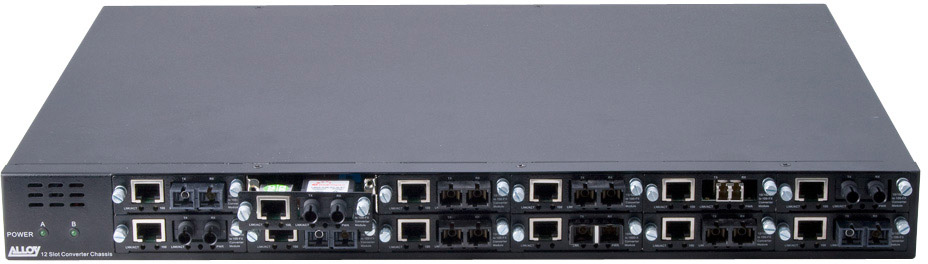

The MFCR100BS3.60 Media Converter Module is designed for use in any of Alloy's MCR12 Series Managed Media Converter Chassis systems. An MFCR100BS3.60 Converter Module can be installed in any of the 12 front panel slots in and MCR12 Chassis. This Converter Module has a Fast Ethernet 100Base-TX RJ-45 port and a singlecore SC terminated WDM 100Base-BX connector, which supports a range of up to 60 kilometres over one core of singlemode fibre cable. This WDM Media Converter multiplexes both send (Tx, on 1310nm wavelength) and receive (Rx, on 1550nm wavelength) datastreams over a single fibre core, thus halving the number of 'lit' fibre cores compared to standard singlemode Converters. This is particularly useful where the capacity of previously laid fibre cable has already been fully utilised. A MFCR100BS3.60 Converter Module must be used with an Alloy MFCR100BS5.60 Converter Module at the other end of the link, or a similar WDM device cable of receiving a 1310nm wavelength datastream.
The MFCR100BS3.60 is a member of the MFCR100 Series of Media Converter Modules. Any combination of these cards and models from the MGCR1000 Series of Gigabit Ethernet Media Converter Modules can be installed in a MCR12 Series Managed Media Converter Chassis system. MFCR100 Series Fast Ethernet Converter Modules provide comprehensive solutions for UTP copper to multimode fibre, UTP copper to singlemode fibre and UTP copper to WDM singlemode/singlecore fibre media conversion. Individual models offer LC, SC or ST fibre connectors, and maximum fibre cable ranges between 2 kilometres an up to 60 kilometres are supported.
Installed in an MCR12 Series Media Converter Chassis, individual MFCR100 Modules can be monitored and configured via the chassis web-based GUI management interface. In addition, an SNMP agent supports the configuration of up to 23 Trap events, with exception alarms sent to specified email address or via the corporate SNMP Trap alarm system. MFCR100 Series Converter Modules provide a flexible and scalable solution for high density and high reliability for most types of Fast Ethernet media conversion.
The MFCR100BS3.60 is a member of the MFCR100 Series of Media Converter Modules. Any combination of these cards and models from the MGCR1000 Series of Gigabit Ethernet Media Converter Modules can be installed in a MCR12 Series Managed Media Converter Chassis system. MFCR100 Series Fast Ethernet Converter Modules provide comprehensive solutions for UTP copper to multimode fibre, UTP copper to singlemode fibre and UTP copper to WDM singlemode/singlecore fibre media conversion. Individual models offer LC, SC or ST fibre connectors, and maximum fibre cable ranges between 2 kilometres an up to 60 kilometres are supported.
Installed in an MCR12 Series Media Converter Chassis, individual MFCR100 Modules can be monitored and configured via the chassis web-based GUI management interface. In addition, an SNMP agent supports the configuration of up to 23 Trap events, with exception alarms sent to specified email address or via the corporate SNMP Trap alarm system. MFCR100 Series Converter Modules provide a flexible and scalable solution for high density and high reliability for most types of Fast Ethernet media conversion.
| • | MFCR100BS3.60 model for Fast Ethernet copper to WDM fibre media conversion - up to 60Km fibre range | |
| • | MFCR100 Series models provide Fast Ethernet to singlemode or WDM singlemode solutions | |
| • | LC, SC and ST fibre connector supported on individual models | |
| • | Up to 60 kilometres fibre range supported on by MFCR100 Series Converter Modules | |
| • | All MFCR100 Series Converter Modules are 'Hot Swap' field upgradable devices | |
| • | Easy 'slide in' installation into Alloy MCR12 Media Converter Chassis systems | |
| • | Supports Far-end Fault Link Fault Passthrough (LFP) | |
| • | Web-based management GUI interface for Converter Module management | |
| • | SNMP agent with up to 32 Trap events and alarms when installed in an MCR12 Chassis | |
| • | Flexible, scalable solution for up to 12 Converter Modules | |
| • | Use paired with an Alloy MFCR100BS5.60 Media Converter Module | |
| MFCR100 SERIES CONVERTER CARD SPECIFICATIONS | |
| Installation | |
| • | Converter Module Cards installed in slots 1 to 12 of any MCR12 Series Media Converter Chassis |
| • | Any mix of MFCR100 and MGCR1000 Series Converter Module Cards can be installed |
| • | All Converter Modules Card are 'Hot Swap' devices and field/user upgradable |
| Converter Module Speed/Interfaces/Protocol Support/Range | |
| This model: | |
| • | MFCR100BS3.60: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-BX WDM with SC connector (60Km max) |
| Other models in the MFCR100 Series: | |
| • | MFCR100LC: 100Mbps; 100Base-TX RJ-45 (100m max) to 1000Base-SX with LC connector (550m max) |
| • | MFCR100SC: 100Mbps; 100Base-TX RJ-45 (100m max) to 1000Base-FX with SC connector (2Km max) |
| • | MFCR100ST: 100Mbps; 100Base-TX RJ-45 (100m max) to 1000Base-FX with ST connector (2Km max) |
| • | MFCR100SC.05: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-FX with SC connector (5Km max) |
| • | MFCR100SC.20: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-FX with SC connector (20Km max) |
| • | MFCR100SC.40: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-FX with SC connector (40Km max) |
| • | MFCR100SC.60: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-FX with SC connector (60Km max) |
| • | MFCR100BS3.20: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-BX WDM with SC connector (20Km max) |
| • | MFCR100BS5.20: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-BX WDM with SC connector (20Km max) |
| • | MFCR100BS3.40: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-BX WDM with SC connector (40Km max) |
| • | MFCR100BS5.40: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-BX WDM with SC connector (40Km max) |
| • | MFCR100BS5.60: 100Mbps; 100Base-TX RJ-45 (100m max) to 100Base-BX WDM with SC connector (60Km max) |
| Network Interfaces | |
| 100Base-TX Ports | |
| • | Auto-Negotiation |
| • | Auto-MDIX |
| • | Transmission: Full or Half Duplex |
| 100Base-FX (Multimode) | |
| • | Auto-Negotiation |
| • | Transmission: Full or Half Duplex |
| • | Wavelength: 1310nm |
| 100Base-FX (Singlemode) | |
| • | Auto-Negotiation |
| • | Transmission: Full or Half Duplex |
| • | Wavelength: 1310nm |
| 100Base-BX (WDM Singlemode) | |
| • | Auto-Negotiation |
| • | Transmission: Full or Half Duplex |
| • | Wavelength: 1310nm (plus multiplexed 1550nm with WDM models) |
| Management Functions | |
| Cable Types Supported | |
| • | UTP or STP copper: CAT.5 or higher |
| • | Multimode fibre: 62.5/125µm, 50/125µm recommended (other grades may be used) |
| • | Singlemode fibre: 9/125mm recommended (other grades may be used) |
| Mechanical | |
| • | Form Factor: Slide-in card-based Module for use with MCR12 Series Chassis |
| LED Indicators | |
| • | Power - Green; when lit +5V power is coming up |
| • | TP Link/Act - Green; when lit connection good, blinks when traffic present |
| • | TP 100 - Green; when lit 100Base-TX connection good, Off when 10Base-T cnnection is good |
| • | FX Link/Act - Green; when lit connection good, blinks when traffic present |
| Environmental | |
| • | Power Requirement : 0.5A@+3.3VDC |
| • | Power Consumption: 1.65W max. (model dependent) |
| • | Ambient Temperature : 0° to 40°C |
| • | Humidity : 5% to 90% |
| • | Card Dimensions : 83(L) x 60(W) mm |
| Emission and Safety Regulations | |
| • | Complies with FCC Part 15 Class A, CE Mark Approval, C-Tick |
| Standards Compliance | |
| • | IEEE 802.3 10Base-T specification |
| • | IEEE 802.3u 100Base-TX specification |
| • | 100Base-FX Fast Ethernet Fibre specification |
| • | 100Base-BX WDM Fast Ethernet Fibre specification |
| • | IEEE 802.3x full-duplex flow control specification |
