ALLOY
MGCR1000SC
Gigabit Media Converter Module, MCR12 Series 1000Base-T (RJ-45) to 1000Base-SX (SC), 550m
This product has been discontinued by Alloy.

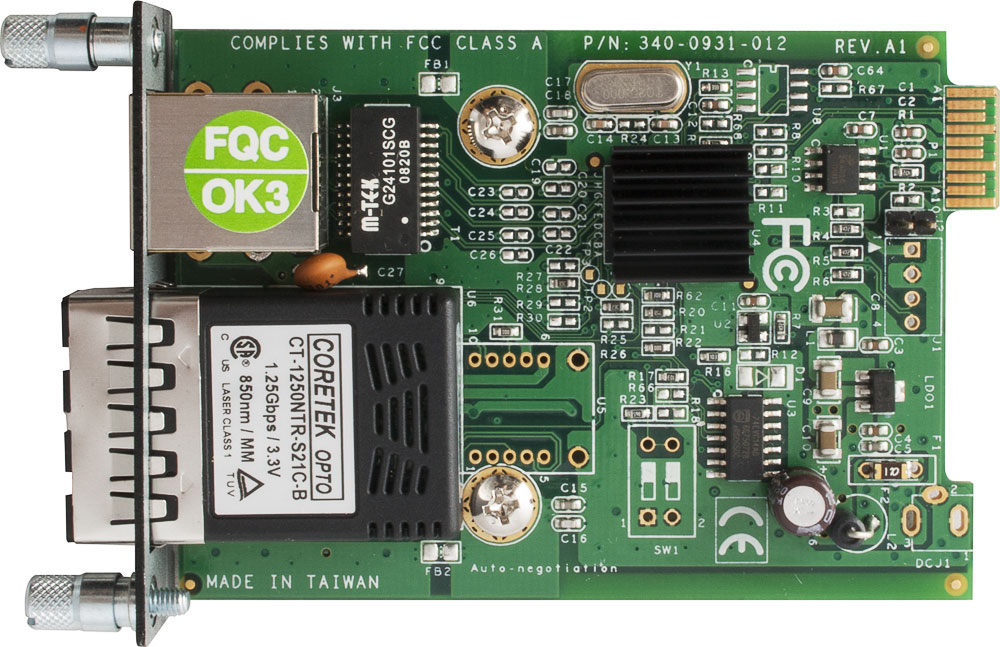

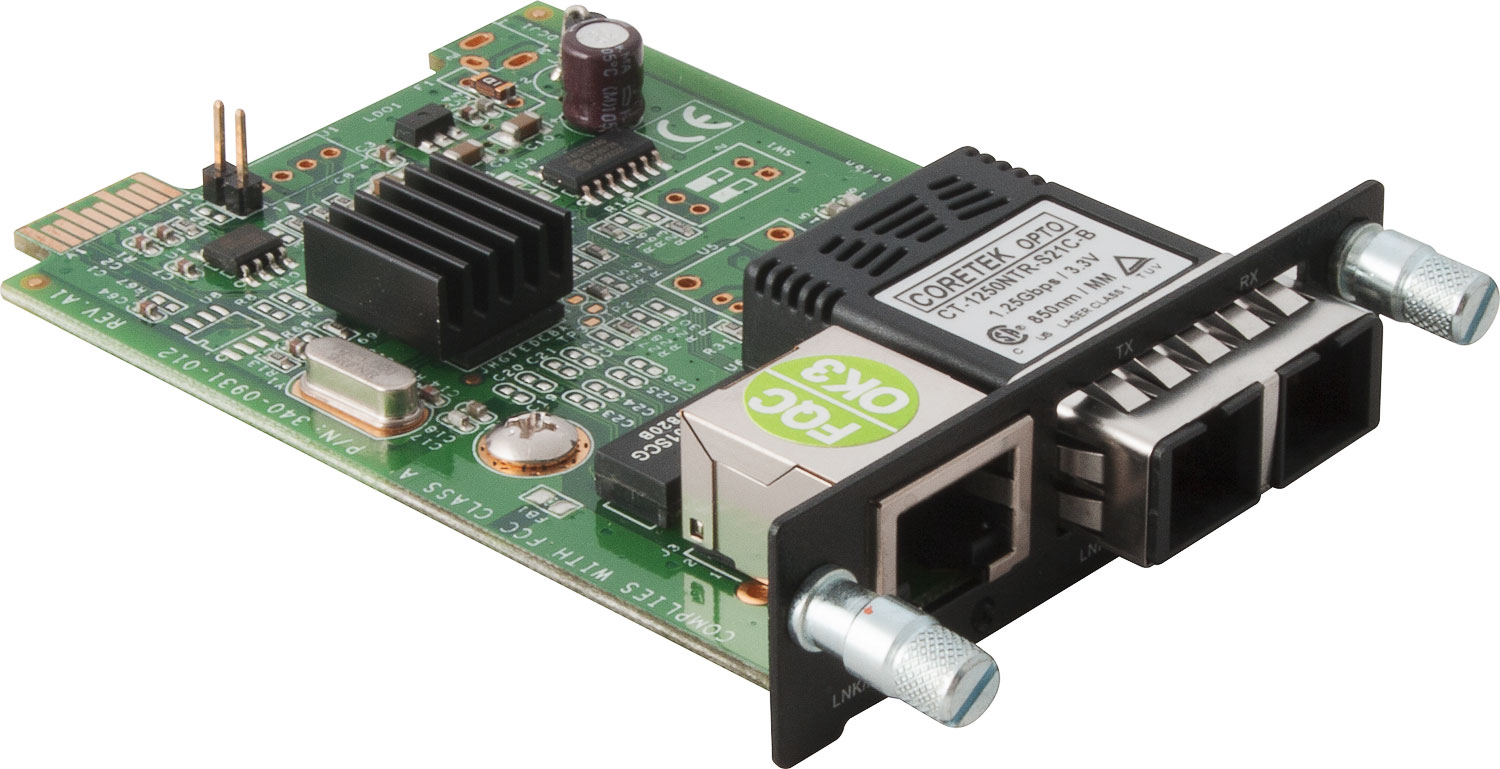

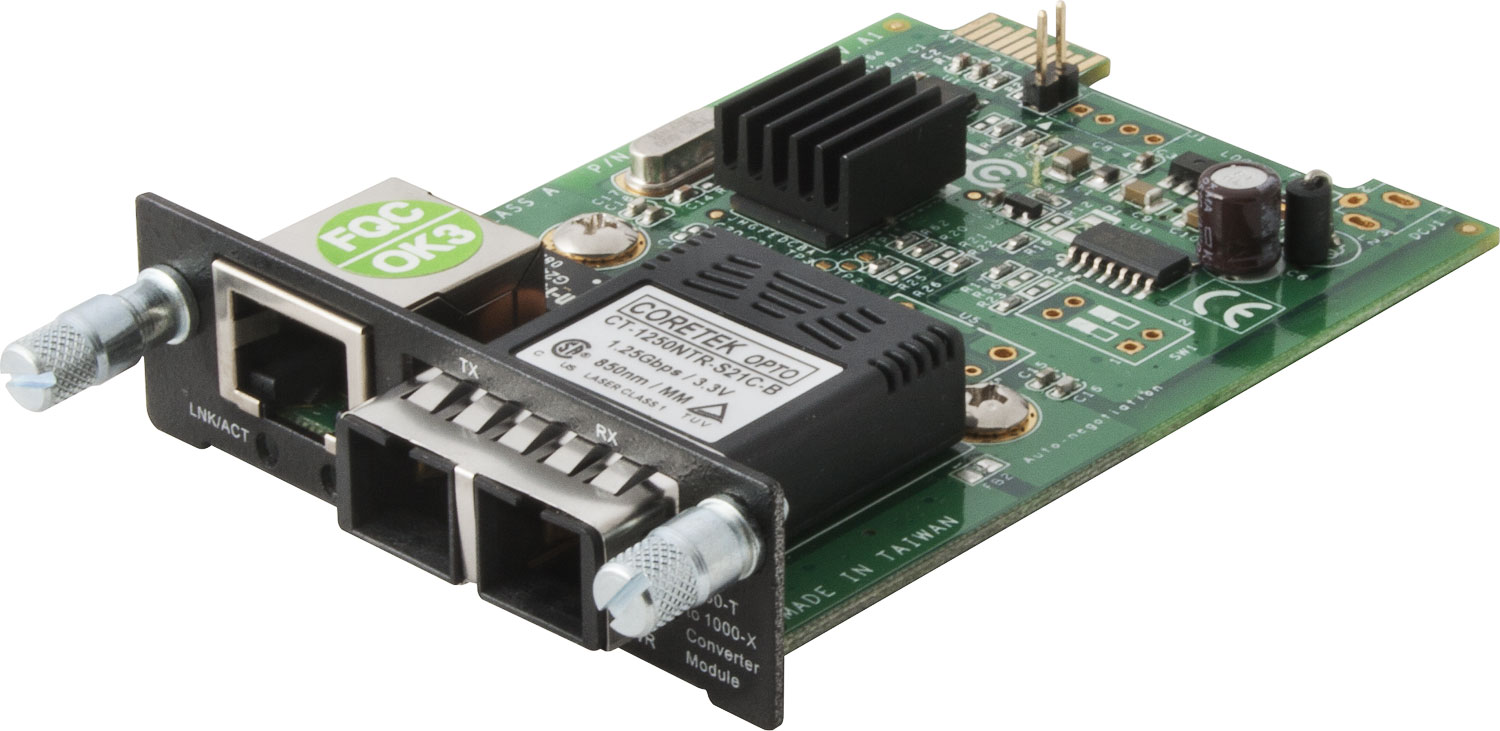

An MGCR1000 Series Gigabit Ethernet Media Converter Module, the MGCR1000SC can be installed in an Alloy MCR12 Series Managed Media Converter Chassis, and has 1x RJ-45 and 1x 1000Base-SX multimode SC ports. Fibre cable range is up to 550m.
The MGCR1000SC Media Converter Module is designed for use in any of Alloy's MCR12 Series Managed Media Converter Chassis systems. An MGCR1000SC Converter Module can be installed in any of the 12 front panel slots in and MCR12 Chassis. This Converter Module has a Gigabit Ethernet 1000Base-T RJ-45 port and an SC terminated 1000Base-SX connector, which supports a range of up to 550 metres over multimode fibre cable.
The MGCR1000SC is a member of the MGCR1000 Series of Media Converter Modules. Any combination of these cards and models from the MFCR100 Series of Fast Ethernet Media Converter Modules can be intalled in a MCR12 Series Managed Media Converter Chassis system. MGCR1000 Series Gigabit Ethernet Converter Modules provide comprehensive solutions for UTP copper to multimode fibre, UTP copper to singlemode fibre and UTP copper to WDM singlemode/singlecore fibre media conversion. Individual models offer LC or SC fibre connectors, and maximum fibre cable ranges between 550 metres an up to 60 kilometres are supported.
Installed in an MCR12 Series Media Converter Chassis, indivudual MGCR1000 Modules can be monitored and configured via the chassis web-based GUI management interface. In addition, an SNMP agent supports the configuration of uo to 23 Trap events, with exception alarms sent to specified email address or via the corporate SNMP Trap alarm system. MGCR1000 Series Converter Modules provide a flexible and scalable solution for high density and high reliability for most types of Gigabit Ethernet media conversion.
The MGCR1000SC is a member of the MGCR1000 Series of Media Converter Modules. Any combination of these cards and models from the MFCR100 Series of Fast Ethernet Media Converter Modules can be intalled in a MCR12 Series Managed Media Converter Chassis system. MGCR1000 Series Gigabit Ethernet Converter Modules provide comprehensive solutions for UTP copper to multimode fibre, UTP copper to singlemode fibre and UTP copper to WDM singlemode/singlecore fibre media conversion. Individual models offer LC or SC fibre connectors, and maximum fibre cable ranges between 550 metres an up to 60 kilometres are supported.
Installed in an MCR12 Series Media Converter Chassis, indivudual MGCR1000 Modules can be monitored and configured via the chassis web-based GUI management interface. In addition, an SNMP agent supports the configuration of uo to 23 Trap events, with exception alarms sent to specified email address or via the corporate SNMP Trap alarm system. MGCR1000 Series Converter Modules provide a flexible and scalable solution for high density and high reliability for most types of Gigabit Ethernet media conversion.
| • | MGCR1000SC model for Gigabit Copper to fibre media conversion - up to 550m fibre range | |
| • | MGCR1000 Series models provide Gigabit to singlemode or WDM singlemode solutions | |
| • | LC and ST fibre connector supported on individual models | |
| • | Up to 60 kilometres fibre range supported on by MGCR1000 Series Converter Modules | |
| • | All MGCR1000 Series Converter Modules are 'Hot Swap' field upgradable devices | |
| • | Easy 'slide in' installation into Alloy MCR12 Media Converter Chassis systems | |
| • | Supports Far-end Fault Link Fault Passthrough (LFP) | |
| • | Web-based management GUI interface for Converter Module management | |
| • | Flexible, scalable solution for up to 12 Converter Modules | |
| MGCR1000 SERIES CONVERTER CARD SPECIFICATIONS | |
| Installation | |
| • | Converter Module Cards installed in slots 1 to 12 of any MCR12 Series Media Converter Chassis |
| • | Any mix of MGCR1000 and MFCR100 Series Converter Module Cards can be installed |
| • | All Converter Modules Card are 'Hot Swap' devices and field/user upgradable |
| Converter Module Speed/Interfaces/Protocol Support/Range | |
| This model: | |
| • | MGCR1000SC: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-SX with SC connector (550m max) |
| Other models in the MGCR1000 Series: | |
| • | MGCR1000LC: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-SX with LC connector (550m max) |
| • | MGCR1000SC.10: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-LX with SC connector (10Km max) |
| • | MGCR1000SC.30: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-LX with SC connector (30Km max) |
| • | MGCR1000SC.50: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-ZX with SC connector (50Km max) |
| • | MGCR1000BS3.10: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-LX WDM with SC connector (10Km max) |
| • | MGCR1000BS5.10: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-LX WDM with SC connector (10Km max) |
| • | MGCR1000BS3.20: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-LX WDM with SC connector (20Km max) |
| • | MGCR1000BS5.20: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-LX WDM with SC connector (20Km max) |
| • | MGCR1000BS3.40: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-ZX WDM with SC connector (40Km max) |
| • | MGCR1000BS5.40: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-ZX WDM with SC connector (40Km max) |
| • | MGCR1000BS3.60: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-ZX WDM with SC connector (60Km max) |
| • | MGCR1000BS5.60: 1Gbps; 1000Base-T RJ-45 (100m max) to 1000Base-ZX WDM with SC connector (60Km max) |
| Network Interfaces | |
| 1000Base-T Ports | |
| • | Auto-Negotiation |
| • | Auto-MDIX |
| • | Transmission: Full-Duplex only |
| 1000Base-SX (Multimode) | |
| • | Auto-Negotiation |
| • | Transmission: Full-Duplex only |
| • | Wavelength: 850nm |
| 1000Base-LX (Singlemode) | |
| • | Auto-Negotiation |
| • | Transmission: Full-Duplex |
| • | Wavelength: 1310nm (plus multiplexed 1550nm with WDM models) |
| Management Functions | |
| Cable Types Supported | |
| • | UTP or STP copper: CAT5 or higher |
| • | Multimode fibre: 62.5/125µm, 50/125µm recommended (other grades may be used) |
| • | Singlemode fibre: 9/125mm recommended (other grades may be used) |
| Mechanical | |
| • | Form Factor: Slide-in card-based Module for use with MCR12 Series Chassis |
| LED Indicators | |
| • | Power - Green; when lit +5V power is coming up |
| • | TP Link/Act - Green; when lit connection good, blinks when traffic present |
| • | FX Link/ - Green; when lit connection good, blinks when traffic present |
| Environmental | |
| • | Power Requirement : 0.6A@+3.3VDC |
| • | Power Consumption: 1.98W max. (model dependent) |
| • | Ambient Temperature : 0° to 40°C |
| • | Humidity : 5% to 90% |
| • | Card Dimensions : 83(L) x 60(W) mm |
| Emission and Safety Regulations | |
| • | Complies with FCC Part 15 Class A, CE Mark Approval, C-Tick |
| Standards Compliance | |
| • | IEEE 802.3ab 1000Base-T specification |
| • | IEEE 802.3z 1000Base-X specification |
| • | IEEE 802.3x full-duplex flow control specification |
| • | 1000Base-SX/LX/ZX Gigabit Ethernet Fiber specification |
