This product is no longer stocked by Alloy

ALLOY

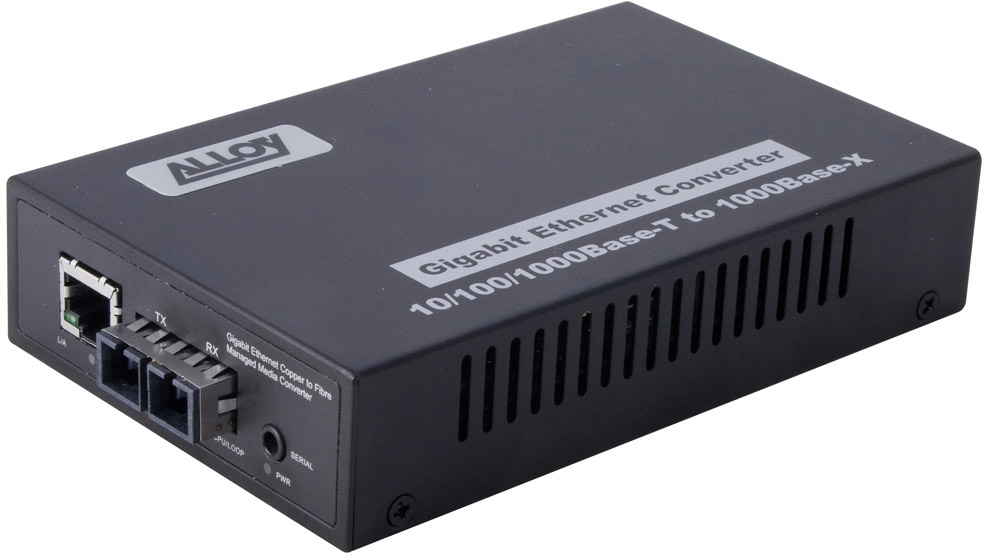

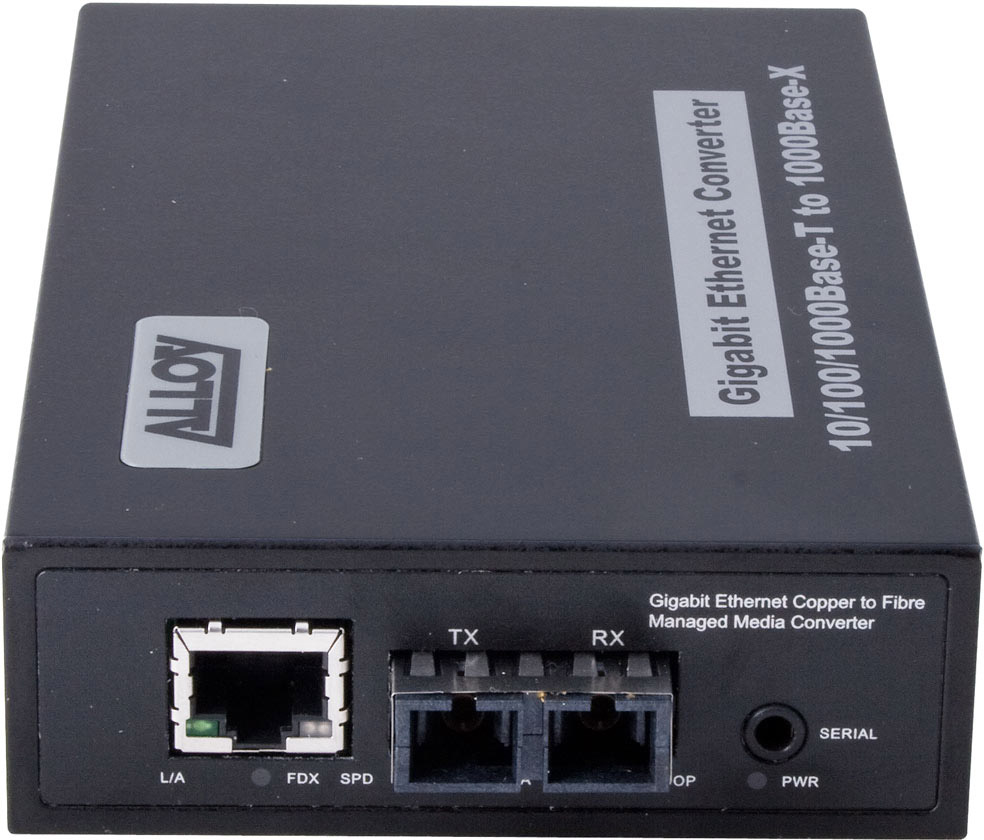

MMC1000SC.S50

Gigabit Ethernet SNMP Managed Media Converter 1000Base-T to 1000Base-LX (SC), LFP, 50Km

The MMC1000SC.S50 Gigabit Ethernet SNMP Managed Media Converter, an MMC1000 Series model, has a 10/100/1000Mbps RJ-45 and a 1000Base-SX SC port for Gigabit singlemode fibre 30Km links. Monitor, configure and control the device via SNMP or Telnet.

ALLOY
discontinued
Alternate Text
MMC1000SC.S50
MMC1000SC.S50
MMC1000SC.S50

This product is no longer stocked by Alloy

ALLOY

MMC1000SC.S50

Gigabit Ethernet SNMP Managed Media Converter 1000Base-T to 1000Base-LX (SC), LFP, 50Km

The MMC1000SC.S50 Gigabit Ethernet SNMP Managed Media Converter, an MMC1000 Series model, has a 10/100/1000Mbps RJ-45 and a 1000Base-SX SC port for Gigabit singlemode fibre 30Km links. Monitor, configure and control the device via SNMP or Telnet.

Description

The MMC1000SC.S50 Gigabit Ethernet SNMP Managed Media Converter, an MMC1000 Series model, has a 10/100/1000Mbps RJ-45 and a 1000Base-SX SC port for Gigabit singlemode fibre 30Km links. Monitor, configure and control the device via SNMP or Telnet.

The MMC1000SC.S50 SNMP Managed Gigabit Ethernet Media Converter is designed for applications requiring conversion between Gigabit Ethernet 10/100/1000Base-T over UTP/STP copper and 1000Base-LX singlemode fibre cable. The device's RJ-45 port supports a maximum link range of 100 metres, and the SC singlemode fibre connector supports a maximum link range of 50 kilometres.

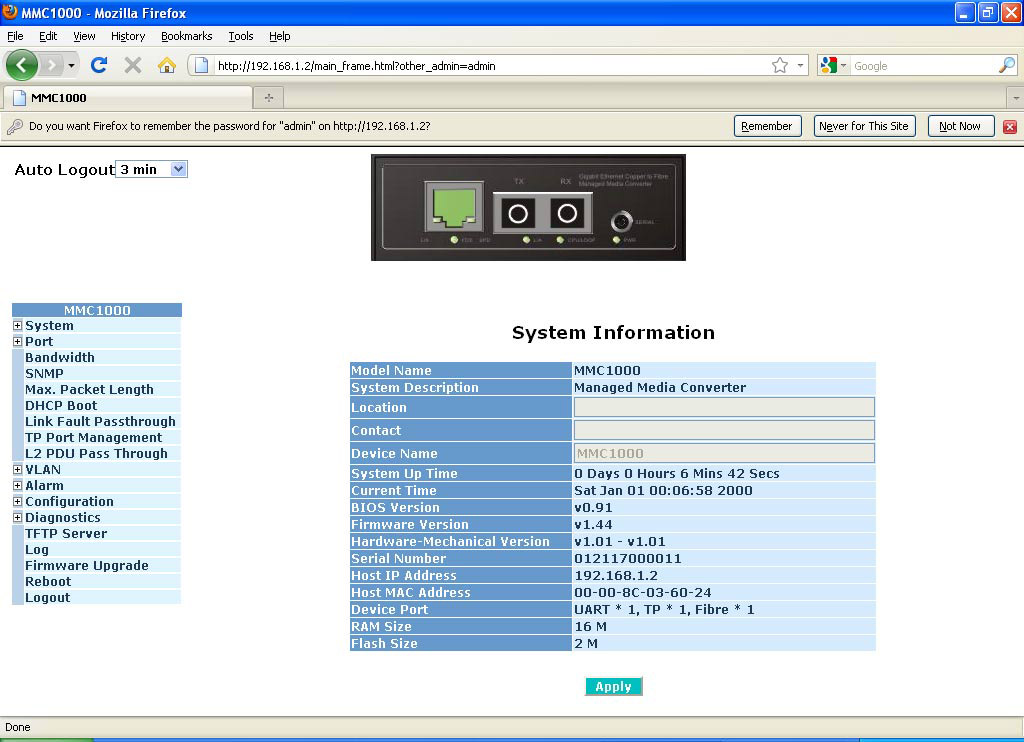

The MMC1000SC.S50 is a model from Alloy's MCM1000 Series of Media Converters, which includes devices for 10/100/1000Mbps RJ-45 copper to 1000Base-SX multimode fibre (with either SC or LC connectors), 10/100/1000Mbps RJ-45 copper to 1000Base-LX singlemode fibre (SC connector for 10, 30 or 50Km ranges), and 10/100/1000Mbps RJ-45 copper to Gigabit WDM singlemode/singlecore fibre (SC connector, 20Km range). All models in the MMC1000 Series operate with wirespeed packet forwarding performance, and provide an SNMP agent, web-based management and Telnet/CLI text-based management. Network administrators can logon to the Converter to monitor, configure and control the activity of each port. In addition, the Converter implements bandwidth rating management capabilities via its intelligent software. The overall network management is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications. The comprehensive range of MMC1000 Series Converter features also includes RMON Counter support for port traffic monitoring, 802.3ah OAM functions, 802.1q Tagged VLAN and 'Far End Fault' mode LFP (Link Forward Propagation).
Features
Wirespeed Gigabit Etherner packet forwarding performance with all MMC1000 Series Converters
Models for 1000Base-T copper to 1000Base-SX multimode fibre applications
Models for 1000Base-T copper to 1000Base-LX singlemode fibre applications
Models for 1000Base-T copper to 1000Base-LX WDM singlemode/singlecore fibre applications
LC amd SC Gigabit Ethernet fibre port interfaces
10/100/1000Mbps auto-negotiation on RJ-45 copper port
Maximum fibre link range - 50 kilometres
Powerful monitoring, configuration and control management features
Web, Telnet, CLI and SNMP management interfaces
'Far End Fault' mode Link Forward Propagation support
802.3ah OAM "Ethernet in the First Mile" functions including 'Dying Gasp' messaging
