The MSPS2 48V DC Power Supply Module is used as a single or dual redundant power supply for Alloy MS888G2 Series Switches and MCR12 Series Media Converter Chassis. This 'Hot Swap' Power Module is field or user upgradable with no system downtime.
If an AC Power Supply is required for an MS888G2 Series switch or MCR12 Series Media Converter Chassis, the MSPS1 100-240V AC Power Module can be used, either as a single power source, as a dual redundant AC power supply, or with an MSPS2, to support dual redundant AC and DC power supply.
The MSPS2 is field or user upgradable, or can be purchased pre-installed in an MS888G2 switch or MCR12 Chassis. The MSPS2 Power Module is a 'hot swappable' device, allowing field installation of the component without system downtine when dual power supplies are present. This Power Module is an excellent option when using MS888G2 or MCR12 Series models in industrial environments, for Telcos and Service Providers and in any setting where DC power needs to be used either as the primary or secondary standby power source.
|•||Modular 48V DC Power Supply|
|•||Designed for MS888G2 Series Modular Switches and MCR12 Series Media Converter Chassis systems|
|•||Use as a single power source or 2 units for Dual Redundant Power with autop-failover|
|•||AC Power Module also available|
|•||'Hot Swap' device - field or user upgradable, no system downtime|
|•||Voltage: –48VDC, 5V/20A, 100W|
|•||Consumption : Max. 55W|

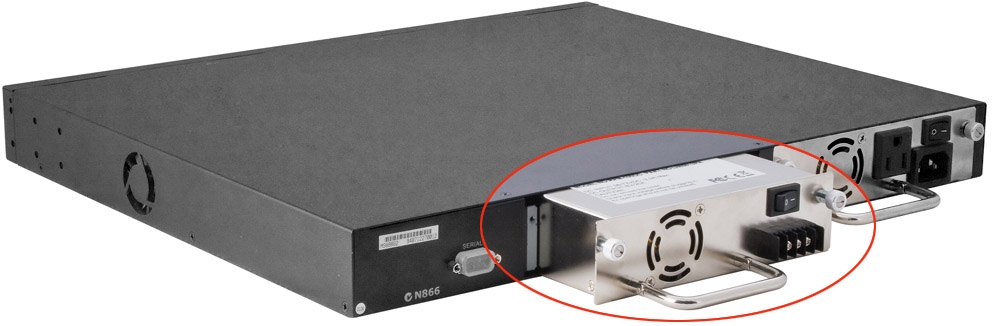

|•||Install in either MS888G2 Series Switch rear panel Power Module Bay or|
|•||In MCR12 Series Media Converter Chassis rear panel Power Module Bay|
|•||Install 1 Power Module for single power supply|
|•||Install 2 Power Modules for dual Redundant Power supply with auto-failover|
|•||Install any mix of DC (MSPS2) or AC (MSPS1) Power Modules|
|•||'Hot Swappable' device|
