Quattro3 Power Hub. for use with Quattro3 Series MT304.
Designed for use with the MT304 model of the Quattro3 Series, the MT340 Power Hub enables a speakerphone to be placed up to 100 feet from a video conference sourcing unit, without the performance degeneration associated with USB Extenders.

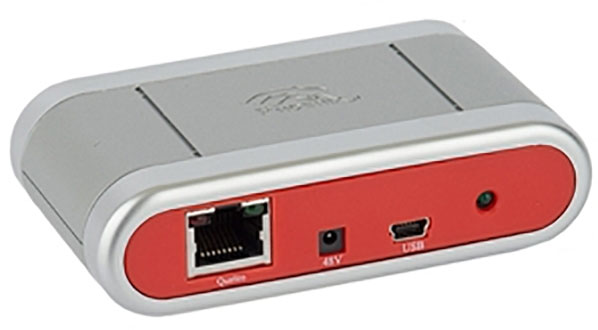

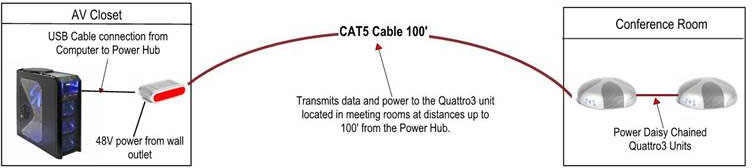

Designed for use with the MT304, the Quattro3 Power Hub MT340 is a small unit that is positioned next to the computer and connects through a standard USB cable and a proprietary 48V AC/DC power adaptor. The Power Hub is then connected to the master Quattro3 unit via any standard CAT5 cable. Both data and power are routed to the Quattro3 through the CAT5 cable, allowing the PC to be up to 100 feet away from the first Quattro3 unit. The Power Hub also supports power daisy chaining when connected to Quattro3 units that support power daisy chaining.
|•||Utilize MT304 USB Speakerphone in large sized conference rooms|
|•||Place an NT304 speakerphone up to 100 feet from a video conference sourcing unit, over Cat.5 UTP cable|
|•||The Quattro3 Power Hub guarantees full audio performance on an MT304 at up to 100 feet distance|
|•||Also supports diasy chaining when connected to appropriate Quattro3 units|
|•||USB connection to a video conference sourcing unit (PC, Video Conference Appliance, etc)|
|•||RJ-45 connector on NT340 supports an MT304 over Cat5 cable, up to 100 feet range|
|•||The MT340 supports the full high definition audio performance of an MT304 Speakerphone|
