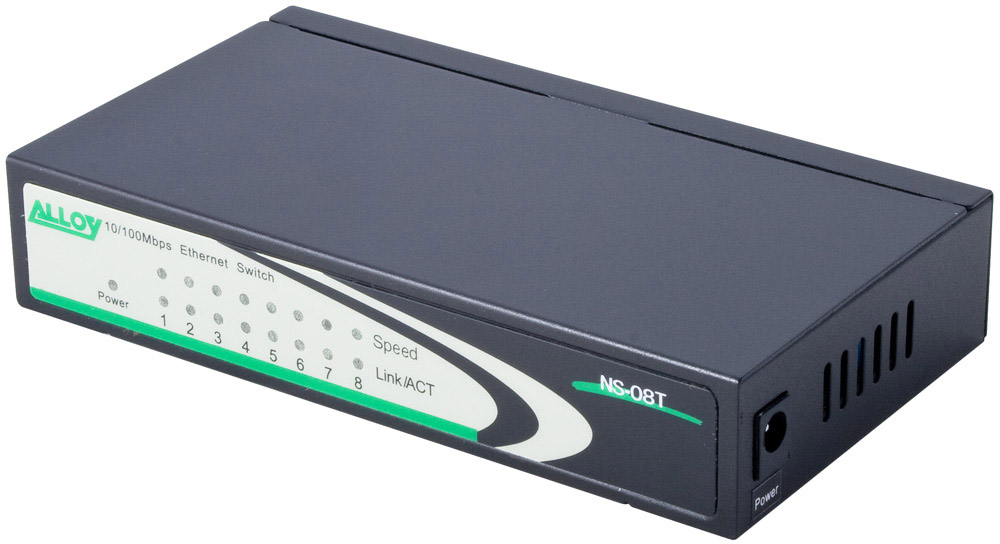

NS-08T
8 Port Unmanaged Fast Ethernet Switch With 8x 100Base-TX RJ-45 ports, Desktop
The Alloy NS-08T is an unmanaged Layer 2 Fast Ethernet switch. The compact desktop case is ideally suited to support small workgroups in Fast Ethernet network environments.
discontinued
This product is no longer stocked by Alloy
ALLOY
NS-08T
8 Port Unmanaged Fast Ethernet Switch With 8x 100Base-TX RJ-45 ports, Desktop
The Alloy NS-08T is an unmanaged Layer 2 Fast Ethernet switch. The compact desktop case is ideally suited to support small workgroups in Fast Ethernet network environments.
Description
The Alloy NS-08T is an unmanaged Layer 2 Fast Ethernet switch. The compact desktop case is ideally suited to support small workgroups in Fast Ethernet network environments.
Alloy's NS-08T 10/100Mbps Fast Ethernet Switch is designed to meet IEEE 802.3, 802.3u and 802.3x specifications. With 8x 1000Base-TX and wirespeed switching performance, this switch is a cost-effective solution for easing network congestion and enhancing network performance in Fast Ethernet environments. Store-and-forward switching technology ensures low latency and eliminates data fragments and corrupted packets. In full-duplex mode, transmission and reception of packets can occur simultaneously without causing collisions, supporting transmission speeds of 200Mbps whilst concurrent read/write operations are taking place. Nway functionality auto-configures all ports for half or full-duplex transmission modes and 10Mbps or 100Mbps speeds. Each port will also auto detect MDI/MDI-X cable connections allowing any port to be connected either as a workstation port or an uplink port to another switch. A comprehensive LED suite provides status information, including Link/Activity, 100Mbps and Full-Duplex LEDs.The NS-08T's small form factor all-metal case and 300 gram weight makes the device an ideal solution for supporting small workgroups in Fast Ethernet network environments..
The NS-08T is a member of the NS Switch Series, which offers a range of Rackmount and Desktop Fast Ethernet switch solutions.
Features
8x 10/100Mbps 100Base-TX Fast Ethernet RJ-45 ports | ||
Wirespeed performance: 1.6Gbps switching capacity | ||
Supports Auto-negotiation for speed and duplex modes on each port | ||
Supports Auto-MDI/MDI-X for each port | ||

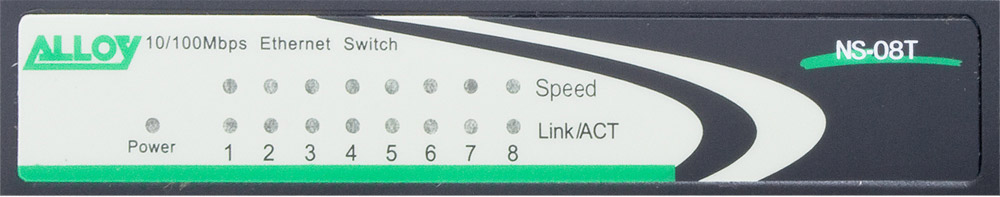

Front-panel diagnostic LED’s | ||
Broadcast storm protection | ||
IEEE 802.3x flow control for full-duplex | ||
Back pressure flow control for half-duplex | ||
Broadcast storm protection | ||
All-metal compact Desktop case |
