ALLOY

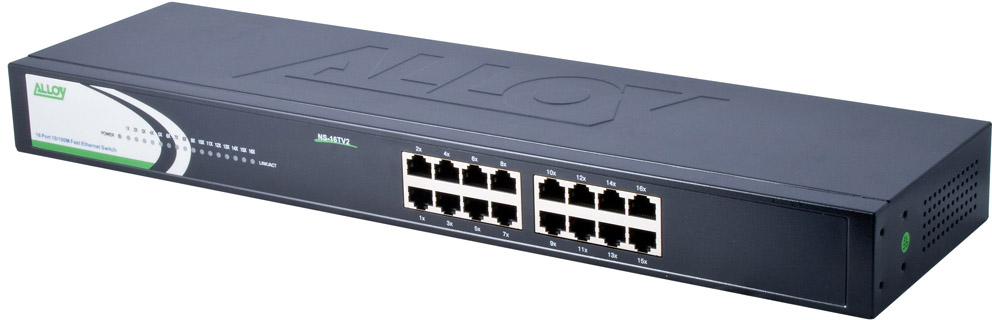

NS-16TV2
16 Port Unmanaged Fast Ethernet Switch With 16x 100Base-TX RJ-45 ports, Rackmount
This product has been discontinued by Alloy.
The Alloy NS-16TV2 is an unmanaged Layer 2 Fast Ethernet switch. With 3.2Gbps switching capacity, this wirespeed performance switch is ideally suited for medium sized Fast Ethernet network environments.
Alloy's NS-16TV2 10/100Mbps Fast Ethernet Switch is designed to meet IEEE 802.3, 802.3u and 802.3x specifications. With 16x 1000Base-TX and wirespeed switching performance, this switch is a cost-effective solution for easing network congestion and enhancing network performance in Fast Ethernet environments. Store-and-forward switching technology ensures low latency and eliminates data fragments and corrupted packets. In full-duplex mode, transmission and reception of packets can occur simultaneously without causing collisions, supporting transmission speeds of 200Mbps whilst concurrent read/write operations are taking place. Nway functionality auto-configures all ports for half or full-duplex transmission modes and 10Mbps or 100Mbps speeds. Each port will also auto detect MDI/MDI-X cable connections allowing any port to be connected either as a workstation port or an uplink port to another switch. A comprehensive LED suite provides status information, including Link/Activity, 100Mbps and Full-Duplex LEDs. 19 inch rack-mount brackets are supplied with the product.
The NS-16TV2 is a member of the NS Switch Series, which offers a range of Rackmount and Desktop Fast Ethernet switch solutions.
The NS-16TV2 is a member of the NS Switch Series, which offers a range of Rackmount and Desktop Fast Ethernet switch solutions.
| • | 16x 10/100Mbps 100Base-TX Fast Ethernet RJ-45 ports | |
| • | Wirespeed performance: 3.2Gbps switching capacity | |
| • | Supports Auto-negotiation for speed and duplex modes on each port | |
| • | Supports Auto-MDI/MDI-X for each port | |
| • | Front-panel diagnostic LED’s | |
| • | Broadcast storm protection | |
| • | IEEE 802.3x flow control for full-duplex | |
| • | Back pressure flow control for half-duplex | |
| • | Broadcast storm protection | |
| • | 19” Rackmount all-metal case | |
| Standards | |
| • | IEEE 802.3 10Base-T Ethernet |
| • | IEEE 802.3u 100Base-TX Ethernet |
| • | IEEE IEEE802.3x Flow Control |
| Transmission Mode | |
| • | 10/100Mbps support full or half duplex |
| Physical Ports | |

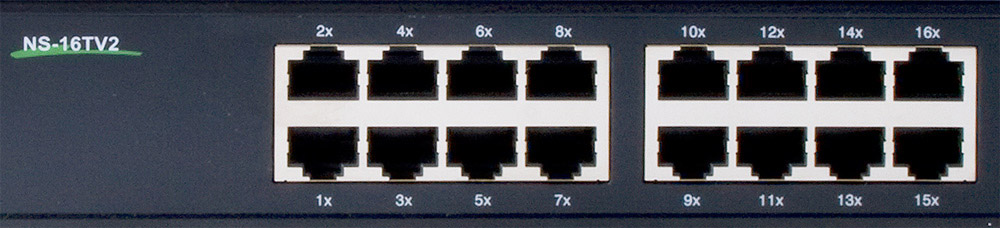

| • | 16x 100Base-TX Fast Ethernet RJ-45 ports |
| • | Nway and Auto-MDI/MDI-X, all ports |
| Network Cables Supported | |
| • | 10Base-T: 2-pair UTP Cat. 3,4,5; EIA/TIA- 568 100-ohm STP |
| • | 100Base-TX: 2-pair UTP Cat. 5, 5e; EIA/TIA-568 100-ohm STP |
| Performance | |
| • | Switching Fabric: Integrated ASIC |
| • | Switching capacity: 3.2Gbps |
| • | Packet Filtering/Forwarding Rate: 14,880pps (Ethernet), 148,800pps (Fast Ethernet) |
| • | Packet buffer: 1.25Mbit per device |
| • | Filtering Address Table Size: 4K auto-learning and auto-aging |
| Layer 2 Functions | |
| • | 802.3x Full duplex Flow Control |
| • | Half duplex backpressure flow control |
| • | Broadcast storm control |
| Mechanical Specifications | |
| • | Dimensions: 44mm x 440mm x 123mm (H x W x D) |
| • | Weight: 1.3Kg/2.87Lbs |
| • | Case: 1RU Rackmount |

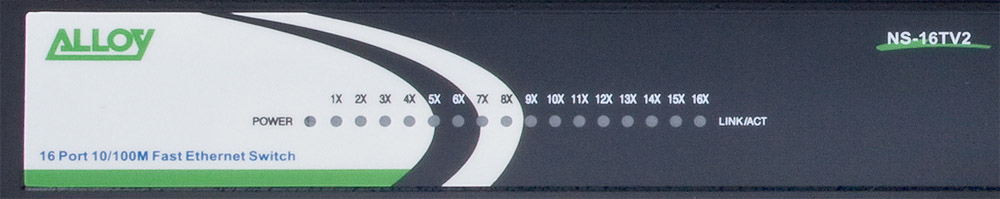

| • | LED Indicators: System Power, RJ45 Port Link/Activity/Speed |
| Electrical Specifications | |
| • | AC Power Input: 100-240VAC 50/60Hz internal universal power supply |
| • | Power Consumption: 15 watts maximum |
| Safety | |
| • | CUL, CB |
| Electromagnetic Compatibility | |
| • | CE Mark, FCC Part 15 Class A, VCCI Class A, C-Tick |
| Environmental Specifications | |
| • | Temperature: 0° to 40°C (Standard Operating); -40° to 70°C (Non-Operating) |
| • | Humidity: 10% to 90% (operating); 5% to 90% (storage) |
