This product is no longer stocked by Alloy

Recommended replacement AS2024-P

ALLOY

POEFE24TV2

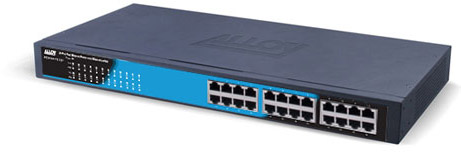

24 Port Fast Ethernet 802.3at PoE Unmanaged Switch

The POEFE24TV2 is an unmanaged, low cost Fast Ethernet Power over Ethernet (PoE) rackmount switch, designed to support higher density workgroups where devices such as IP Phones require powering from the switch over UTP data cable.

ALLOY
discontinued
Alternate Text
POEFE24TV2

This product is no longer stocked by Alloy

Recommended replacement AS2024-P

ALLOY

POEFE24TV2

24 Port Fast Ethernet 802.3at PoE Unmanaged Switch

The POEFE24TV2 is an unmanaged, low cost Fast Ethernet Power over Ethernet (PoE) rackmount switch, designed to support higher density workgroups where devices such as IP Phones require powering from the switch over UTP data cable.

Description

The POEFE24TV2 is an unmanaged, low cost Fast Ethernet Power over Ethernet (PoE) rackmount switch, designed to support higher density workgroups where devices such as IP Phones require powering from the switch over UTP data cable.

The POEFE24TV2 is a rackmount switch featuring 24x 10/100Mbps Fast Ethernet PoE ports, fully compliant to the IEEE 802.3at and af Power over Ethernet standards. All ports are auto-sensing, auto MDI/X, allowing easy connectivity to your existing switching infrastructure and PoE Powered Device (PD) such as IP Phones, Wireless Access Points and IP Video Cameras. All ports support up to 30W of power, with the switch supporting up to 220W watts total power - 9W per port at full load. The switch itself is powered by an internal power supply.

The POEFE24TV2 is the ideal solution for adding low cost, high reliability PoE capability to support PoE powered devices for larger workgroups.
Features
Up to 30 watts of power supported on each PoE port
Switch supports 220 watts total PoE power for all PoE ports
At full load the POE switch will support 30W on 7 ports, 15.4W on 12 ports or 7.5W on 24 ports
Supports all IEEE802.3at and af compliant PD PoE devices
IEEE802.3x Flow Control for full duplex mode and Back Pressure for half-duplex mode
8K MAC address with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
POEFE24TV2
