discontinued
ALLOY
POEGE24T2SFP
24 Port Gigabit 802.3at PoE Switch + 2 SFP Ports, 260 Watts
This product has been discontinued by Alloy.
Alloy recommends replacement product AS1026-P

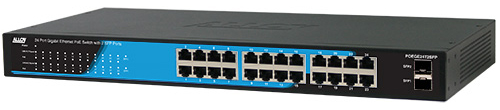

The POEGE24T2SFP is an unmanaged low cost Gigabit Ethernet Power Over Ethernet switch. The switch consists of 24x 10/100/1000Mbps PoE ports plus 2x 1000Mb SFP Ports.
The POEGE24T2SFP is an unmanaged low cost Gigabit Ethernet Power Over Ethernet switch. The switch consists of 24x 10/100/1000Mbps PoE ports plus 2x 1000Mb SFP Ports. All copper ports are auto sensing, auto MDI/X ports allowing easy connectivity to your existing switching infrastructure and your PD PoE devices, such as IP Phones, Wireless Access Points and IP Video Cameras. All ports support up to 30W of power, with the switch supporting 10.8W per port at full load. The POEGE24TV2 supports up to 260W in total.
| • | Supports PoE power up to 30W for each PoE port | |
| • | Supports PoE power up to 260W for all PoE ports | |
| • | Supports PoE IEEE802.3at/af compliant PDs | |
| • | Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode | |
| • | Supports IEEE802.3az energy efficient Ethernet (EEE) | |
| • | 16K MAC address with auto-learning and auto-aging | |
| • | LED indicators for monitoring power, link, activity and speed | |
| • | 2x SFP Ports for fibre up links to your existing switching infrastructure | |
| Standards | |
| • | IEEE - 802.3 10Base-T, 802.3u 100Base-TX, 802.3x, 802.3af, 802.3at, 802.3ab, 802.3az |
| Number of Ports | |
| • | 24 x 10/100/1000Mbps Auto-Negotiation ports |
| • | 2x 1000Mb SFP Ports |
| Switching Capacity | |
| • | 52G |
| MAC Address Table | |
| • | 16K |
| POE | |
| • | Up to 30W per port |
| • | 10.8W per port at full load |
| • | Total Switch Power: 260W |
| • | Pins 1,2,3 and 6 (Ports 1,3,5,7……..19,21,23) |
| • | Pins 4,5,7 and 8 (Ports 2,4,6,8……..20,22,24) |
| Dimensions (W × D × H) | |
| • | 440 x 205 x 44 (mm) 19” Rackmountable Metal Enclosure |
| Environment | |
| • | Operating Temperature: 0°C - 40°C |
| • | Storage Temperature: -10°C - 70°C |
| • | Operating Humidity: 10%~90% non-condensing |
| • | Storage humidity: 5%~90% non-condensing |
| Power Supply | |
| • | AC 100V ~ 240V 50/60Hz (Internal Power Supply) |
