ALLOY

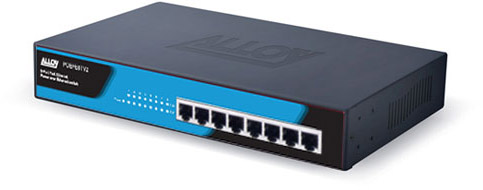

POEGE8TV2
8 Port Gigabit Ethernet 802.3at PoE Unmanaged Switch
This product has been discontinued by Alloy.
Alloy recommends replacement product AS1008-P
The POEGE8TV2 is an unmanaged, low cost Gigabit Ethernet Power over Ethernet (PoE) desktop switch, designed to support small density workgroups where devices such as IP Phones require powering from the switch over UTP data cable.
The POEGE8TV2 is a desktop switch with 8x 10/100/1000Mbps PoE ports, fully compliant to the IEEE 802.3at and af Power over Ethernet standards. All ports are auto sensing, auto MDI/X, allowing easy connectivity to your existing switching infrastructure and your PoE Powered Device (PD), such as IP Phones, Wireless Access Points and IP Video Cameras. All ports support up to 18.75W of power, with the switch supporting up to 150 watts total power. The switch is powered by an external power adapter.
The POEGE8TV2 is the ideal solution for adding low cost PoE capability to support PoE powered devices on smaller networks.
The POEGE8TV2 is the ideal solution for adding low cost PoE capability to support PoE powered devices on smaller networks.
| • | Fanless Design for noise sensitive environments | |
| • | Up to 30 watts of power supported on each PoE port | |
| • | Switch supports 150 watts total PoE power for all PoE ports | |
| • | At full load the POE switch will support 30W on 4 ports, 18.75W on 8 ports or 7.5W on 8 ports | |
| • | Supports all IEEE802.3at/af compliant PD PoE devices | |
| • | IEEE802.3x Flow Control for full duplex mode and Back Pressure for half-duplex mode | |
| • | 8K MAC address with auto-learning and auto-aging | |
| • | LED indicators for monitoring power, link, activity and speed | |
| • | Support for Green Saving, which can save up to 60% of power consumption | |
| Standards | |
| • | IEEE 802.3 10Base-T Ethernet |
| • | IEEE 802.3u 100Base-TX Fast Ethernet |
| • | IEEE 802.3ab 1000Base-T Gigabit Ethernet |
| • | IEEE 802.3x Full Duplex Flow Control |
| • | IEEE 802.3af Power over Ethernet |
| • | IEEE 802.3at Power over Ethernet |
| Physical Ports | |
| • | 8x Gigabit Ethernet 1000Base-T PoE ports |
| Performance | |
| • | Switching Capacity: 16Gbps |
| • | Forwarding Rate: 14880pps (Ethernet); 148800pps (Fast Ethernet); 1488000pps (Gigabit Ethernet) |
| • | MAC Address Table Size: 8K |
| PoE Specifications | |
| • | Maximum PoE power per port: 30 watts |
| • | Maximum PoE power per port (full load): 18.75 watts |
| • | Total PoE Power support by Switch: 150 watts |
| • | POE Pins: PoE delivered on pins 1, 2 (Power-); 3 and 6 (Power+) |
| Mechanical Specifications | |
| • | Form Factor: Desktop case |
| • | Dimensions: 280mm x 179mm x 44.5mm (W x D x H) |
| • | Weight: 1.5Kg (3.3lbs) |
| • | LED Indicators: System Power, LINK/ACT, POE |
| • | AC input: 100-240VAC internal power supply |
| Environmental Specifications | |
| • | Operating Temperature: 0°C - 40°C |
| • | Storage Temperature: -40°C - 70°C |
| • | Operating Humidity: 10%-90% non-condensing |
| • | Storage Humidity: 5%-90% non-condensing |
| Certification | |
| • | C-Tick, CE, FCC, RoHS |
