This product is no longer stocked by Alloy
ALLOY
PW183

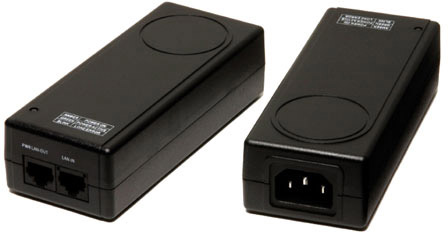

Gigabit Ethernet 802.3af PoE Injector
The PW183 is a 10/100/1000Mbps POE Injector used to supply power to POE devices such as IP Phones, Access Points and IP Cameras.
discontinued
This product is no longer stocked by Alloy
ALLOY
PW183
Gigabit Ethernet 802.3af PoE Injector
The PW183 is a 10/100/1000Mbps POE Injector used to supply power to POE devices such as IP Phones, Access Points and IP Cameras.
Description
The PW183 is a 10/100/1000Mbps POE Injector used to supply power to POE devices such as IP Phones, Access Points and IP Cameras.
The PW183 can be used in conjunction with existing ethernet switching equipment, to allow POE devices to be powered without the need to source POE switches. The POE injector sits in series with the POE device and traditional ethernet switch. The PW183 has two ethernet ports, one which connects to the traditional switch and the other connects to and supplies power to the POE powered device.Features
| 10/100/1000Mbps Data Rates | ||
| Self-contained Injector | ||
| 100-250VAC Universal Input | ||
| Desktop Style / Non-vented Case | ||
| IEEE802.3af Compliant Detection, Disconnect, Overload and Over Voltage Control Function | ||
| Load Diagnostic LED | ||
| Over Load Shutdown and Short Circuit Protection | ||
| Regulated Output With Low Ripple | ||
