This product is no longer stocked by Alloy

Eaton

PW5130I1250-2U

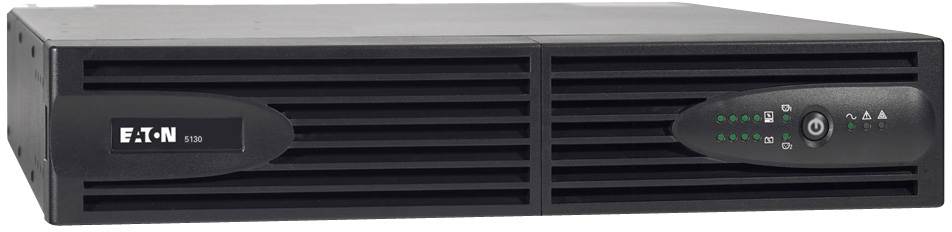

The PW5130i1250-2U, an Eaton 5130 Series Line Interactive UPS, provides high-density power protection for critical loads, delivering more performance in less space at a value price. This 1.25kVA rated UPS has 8x IEC C13 10amp power backup outlets.

Eaton
discontinued
Alternate Text
PW5130I1250-2U
PW5130I1250-2U
PW5130I1250-2U

This product is no longer stocked by Alloy

Eaton

PW5130I1250-2U

The PW5130i1250-2U, an Eaton 5130 Series Line Interactive UPS, provides high-density power protection for critical loads, delivering more performance in less space at a value price. This 1.25kVA rated UPS has 8x IEC C13 10amp power backup outlets.

Description

The PW5130i1250-2U, an Eaton 5130 Series Line Interactive UPS, provides high-density power protection for critical loads, delivering more performance in less space at a value price. This 1.25kVA rated UPS has 8x IEC C13 10amp power backup outlets.

Eaton's PW5130i1250-2UA Line Interactive UPS protects connected equipment from five of the most common power anomalies: failures, surges, sags, under-voltage and over-voltage. This versatile UPS offers the choice of 2RU rackmount or tower installation, and provides high-density power protection for critical loads up to 1.25kVA - delivering more performance in less space at a value price. The PW5130i1250-2U supplies pure waveform power, and has eight IEC C13 10amp power output sockets. With an expandable battery capacity of 1.25kVA/1.15kW, the UPS will support connected devices for up to 15 minutes at 50% load. Voltage fluctuation is automatically corrected and stabilised, preserving battery capacity. Powerful surge suppression is provided via an ANSI C62.41 compliant integrated device. Comprehensive UPS monitoring and management is provided through a combination of LCD user interface, intuitive LanSafe power management and auto-shutdown software, and remote control and monitoring capabilities via a USB or serial RS-232 port, direct connection to an Ethernet network and the Internet for browser-based management and remote on/off and power off ROO/RPO capability. Further powerful management features are available via optional ConnectUPS-MS network management cards for Web, SNMP, Modbus/Jbus or serial connectivity.

The PW5130i1250-2UA is a model from Eaton's 5130 Series of Pure Sinewave Line Interactive UPS. Models in the series offer up to 3kVA/2.7kW battery capacity. In addition to the features mentioned above, all models in the range offer the following powerful features: 0.9 output power factor providing more real wattage in less space; add up to four External Battery Modules (EBM) to extend the UPS battery runtime; hot-swappable batteries to increase UPS availability and minimise service time; Load Segment Control, enabling prioritised shutdown of non-essential equipment during outages, and options for 2RU and short depth 3RU rack cases for 3kVA UPS models. Finally, these further optional hardware items can be connected to a 5130 series UPS: HotSwap Maintenance Bypass Switch (MBP) to avoid 'downtime' during service operations; FlexPDU for increased load distribution; Environmental Monitoring Probe(s) to monitor environmental factors such as humidity and temperature.
Features
PW5130i1250-2U: Line Interactive Pure Sinewave UPS with 1.25kVA battery capacity and 8x power outlets
5130 Series UPS provide more real wattage in less space with a 0.9 power factor

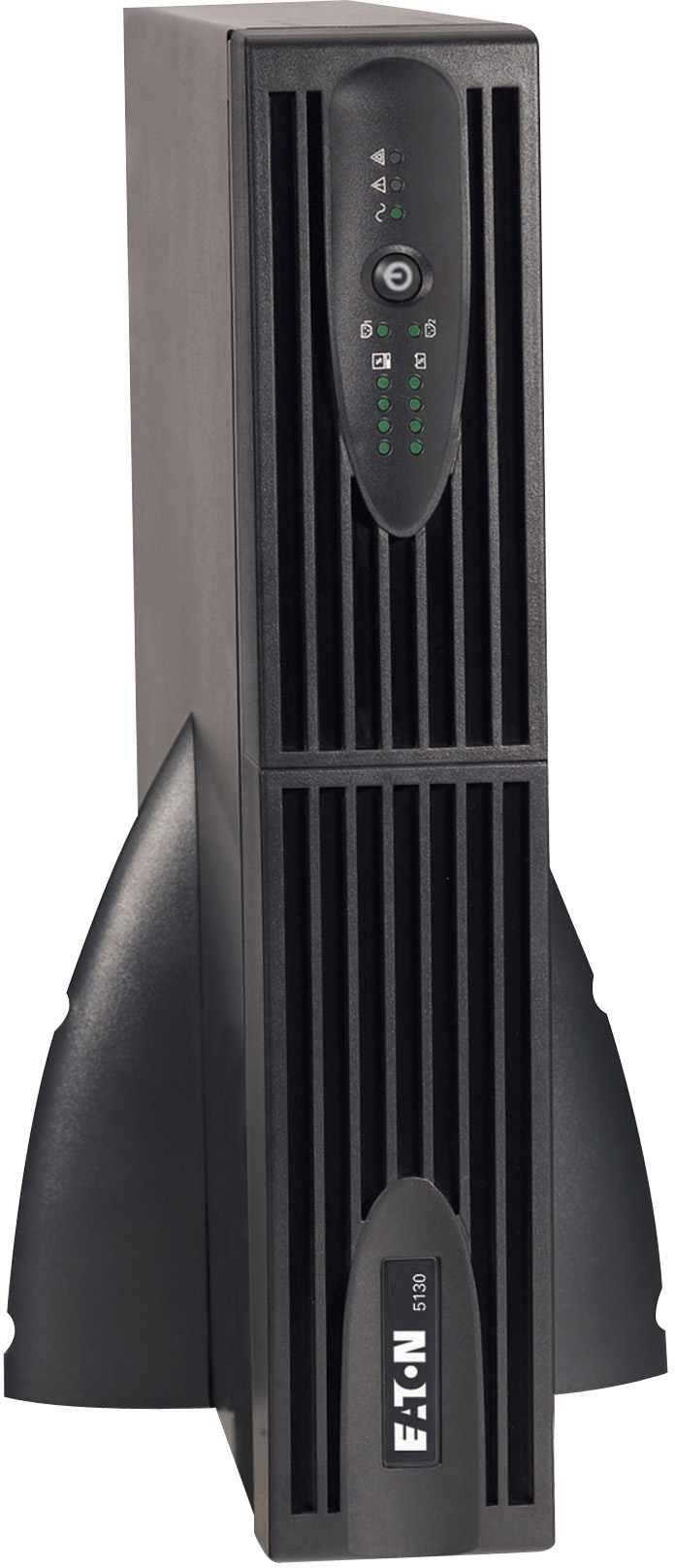

Tower, 2 RU and short-depth 3RU deployment modes (rack kit and pedestals supplied)
Eaton 5130 Series UPS models typically provide 11 minutes battery backup at 50% load
Increase battery capacity with Extended Battery Modules, and increase runtime up to 206 minutes
Hot-swappable user replaceable batteries
Pure Sinewave power supply - best for sensitive electrical components
8 or 9 IEC style power outlets (depending on model)
Integrated surge protection device supporting all power outlets
Combo UPS/Serial comms port and Power Management/Auto-Shutdown software supplied
Direct network connection for browser-based UPS management/monitoring
ROO/RPO emergency stop connector for remote on/off and power off capability
ConnectUPS-MS network management cards for optional Web/SNMP/ModBus/JBus/AS400/Relay card
Optional Maintenance Bypass Switch (MBP), load distribution and Environmental Monitoring Probe devices
* LED indicators and audible alarms display Battery status
PW5130I1250-2U
