This product is no longer stocked by Alloy

Eaton

PW9135G6000-3U

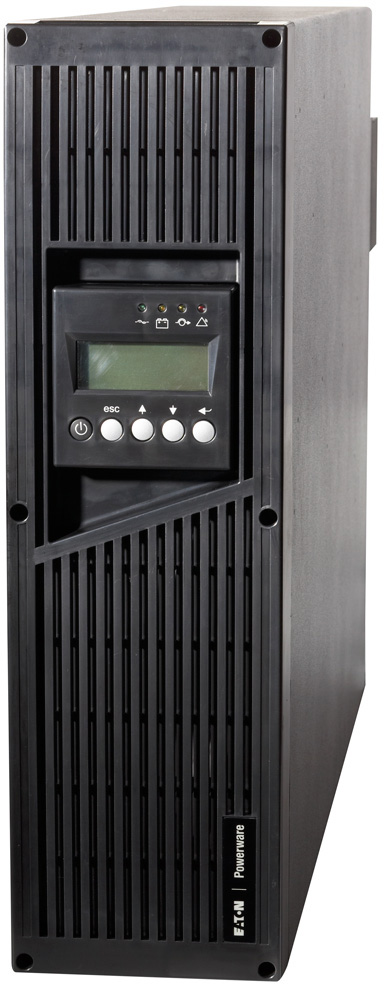

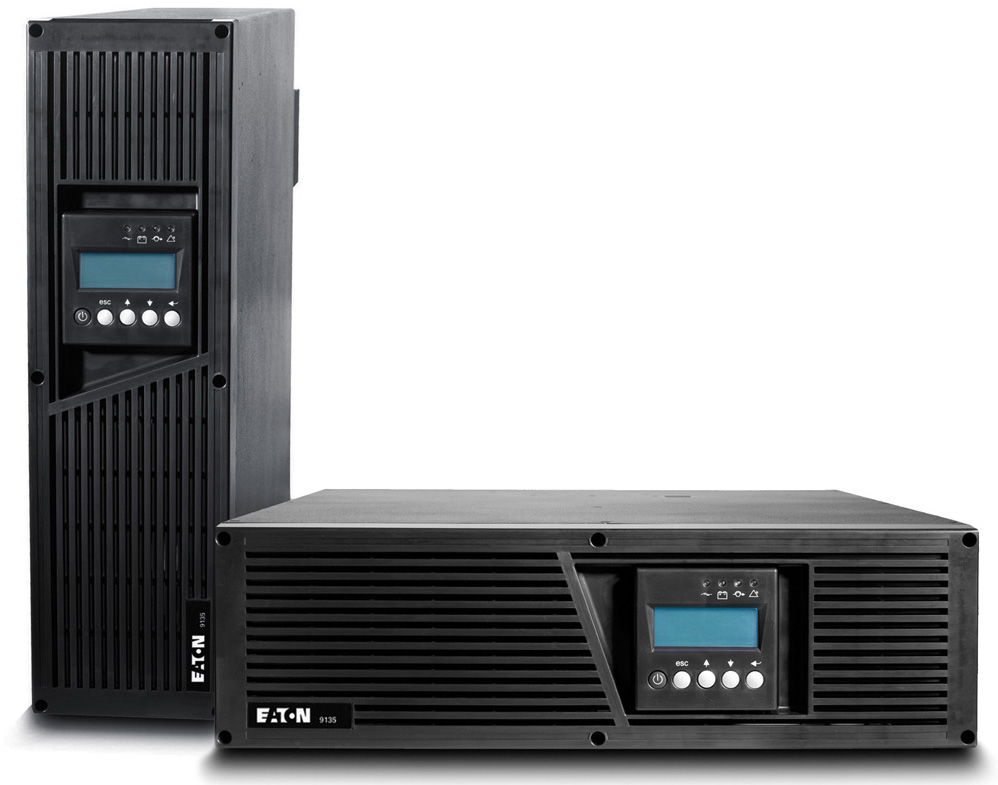

True Online UPS, 6kVA, 3RU Rack / Tower Case Hardwired + 2x IEC C19 + 8x IEC C19 outputs

The PW9135G6000-3U, an Eaton 9135 Rack/Tower True Online UPS, provides clean, continuous power to protect critical equipment from power-related downtime, data loss and process interruption. This 6kVA rated UPS has 10x IEC and hardwired power outlets.

Eaton
discontinued
Alternate Text
PW9135G6000-3U
PW9135G6000-3U
PW9135G6000-3U

This product is no longer stocked by Alloy

Eaton

PW9135G6000-3U

True Online UPS, 6kVA, 3RU Rack / Tower Case Hardwired + 2x IEC C19 + 8x IEC C19 outputs

The PW9135G6000-3U, an Eaton 9135 Rack/Tower True Online UPS, provides clean, continuous power to protect critical equipment from power-related downtime, data loss and process interruption. This 6kVA rated UPS has 10x IEC and hardwired power outlets.

Description

The PW9135G6000-3U, an Eaton 9135 Rack/Tower True Online UPS, provides clean, continuous power to protect critical equipment from power-related downtime, data loss and process interruption. This 6kVA rated UPS has 10x IEC and hardwired power outlets.

Eaton's PW9130G1000R-2U is a True Online UPS. It provides clean, continuous power to protect critical equipment and applications from power-related downtime, data loss and corruption, and process interruption. This versatile UPS can be deployed in either rack or tower modes - rail kits and pedestal stands are provided. In rackmount mode valuable rack space is saved by delivering up to 6kVA/4200W in a compact 3RU case. Featuring powerful double conversion technology, this UPS provides load reliability in the high 9's and protection against the 9 most common power problems. The UPS ensures Increased availability with hot-swappable batteries and power modules, and offers extended battery runtime options through the connection of up to 4 External Battery Modules to support the internal batteries; essential systems can be powered for more than an hour during an outage at full load. UPS monitoring and management is simplified with a bright LCD user interface; Eaton's LanSafe® Software Suite is perfect for managing standard and virtualised environments. Both a RS-232 serial communications port with DB-9 connector is provided plus a HID compliant USB port, and five Dry Alarm Contacts give direct connection into external monitoring and alarm systems. A remote Power Off port is also provided. Load Segment Control allows remote rebooting or sequential shutdown to maximise back up time on mission critical equipment. The PW9130G1000R-2U has eight IEC C13 10amp and 2x IEC C19 16amp power plus hardwired output sockets and 6kVA/4.2kW battery capacity - capable of supporting connected devices for up to 10 minutes at 50% load from internal batteries only.

The PW9130G1000R-2U is the principal component of Eaton's 9135 Online UPS Series. In addition to the standard features of the UPS, a range of optional equipment can be connected, including: ConnectUPSMS SNMP/Web or Modbus/Jbus communications cards; Environmental Monitoring Probes (EMP) for monitoring factors such as humidity and temperature via an internet browser and SNMP traps; and optional HotSwap MBP (Maintenance By-Pass) Modules which allow the UPS to be replaced without interrupting the power supply.
Features
PW9135G6000-3U 9135 Series UPS: True Online dual purpose 3RU Rack / Tower UPS with 61kVA battery capacity

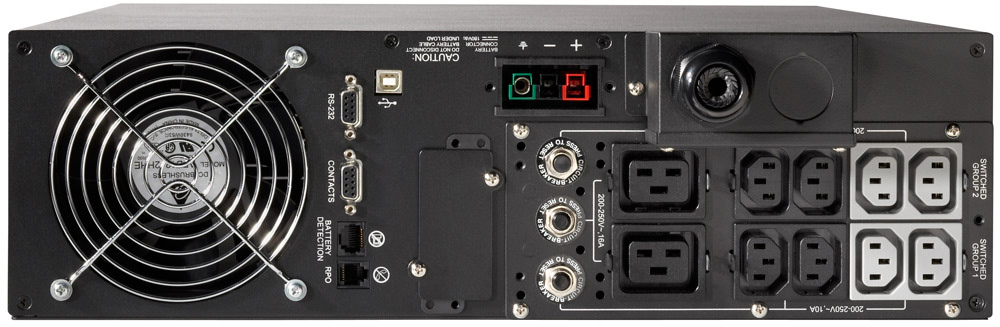

8x IEC C13 10amp and 2x IEC C19 16amp power plus hardwired output sockets
Online double-conversion topology for maximum availability
Wide input voltage range appropriate for the harsh electrical environments
Automatic by-pass and power factor correction
Individually controlled output sockets support prioritised load-shedding capability
Hot swappable, field upgradable internal batteries
9135 UPS provides up to 10 minutes internal battery backup at 50% load
Add up to 4 EBM External Battery Modules for backup times of over 1hour @ full load
Intuitive front-panel LCD displays measurements, alarms and set-up/control menus
LanSafe power management/auto-shutdown software supplied
Serial and USB communications ports plus 5 Dry Alarm Contacts
Wide range of optional items including Web/SNMP Management Card and environmental Monitoring
PW9135G6000-3U
