ALLOY
RC-2002BS5.S60
Fast Ethernet SNMP Managed Media Converter 100Base-TX to WDM (SC, 1550nm TX), LFP, 60Km
This product has been discontinued by Alloy.
The RC-2002BS5.S60 Fast Ethernet SNMP Managed Media Converter, an SC-2002 Series model, has a 10/100Mbps RJ-45 and a 100Base-FX SC port for 100Mbps singlemode WDM 1550nm fibre links of up to 60Km. Monitor, configure and control via SNMP or Telnet.
The RC-2002BS5.S60 SNMP Managed Fast Ethernet Media Converter is designed for applications requiring conversion between Fast Ethernet 10/100Base-TX over UTP/STP copper and 100Base-FX carried over a WDM singlecore/singlemode fibre cable. The device's RJ-45 port supports a maximum link range of 100 metres, and the SC singlecore/singlemode fibre connector supports a maximum link range of 60 kilometres. This type of WDM Converter multiplexes both send and receive datastreams over a single core of singlemode fibre cable, with this model RC-2002BS3.S60 transmitting data on the 1550nm wavelength. The RC-2002BS5.S60 must be used with it's sister product, the RC-2002BS3.S60 on the other end of the link, or a comparable WDM device that can receive a datastream on 1550nm wavength and transmit on 1310nm. A WDM Converter is an ideal solution where previously installed fibre cable that is being used to full capacity, or to double the link capacity on planned fibre cable infrastructure.
The RC-2002BS5.S60 is a model from Alloy's RC-2002 Series of Media Converters, which includes devices with 10/100Mbps RJ-45 copper to 100Base-FX multimode fibre (with either ST or SC connectors), 10/100Mbps RJ-45 copper to 100Base-FX singlemode fibre (SC connector for 5, 20, 40 or 60Km ranges), and 10/100Mbps RJ-45 copper to Fast Ethernet 100Base-FX WDM singlemode/singlecore fibre (SC connector, 20, 40 and 60Km range). All models in the RC-2002 Series operate with wirespeed packet forwarding performance, and provide an SNMP agent, web-based management and Telnet/CLI text-based management. Network administrators can logon to the Converter to monitor, configure and control the activity of each port. All models offer a rich feature set, including bandwidth rating management, RMON Counter support for port traffic monitoring, 802.3ah OAM functions, 802.1q Tagged VLAN, 'Far End Fault' mode LFP (Link Forward Propagation), case intrusion, power voltage and temperature detection, external loop-back capability, broadcast storm filtering, detection of single fibre disconnection, user login management, TFTP on-line upgrade, and many other features.
The RC-2002BS5.S60 is a model from Alloy's RC-2002 Series of Media Converters, which includes devices with 10/100Mbps RJ-45 copper to 100Base-FX multimode fibre (with either ST or SC connectors), 10/100Mbps RJ-45 copper to 100Base-FX singlemode fibre (SC connector for 5, 20, 40 or 60Km ranges), and 10/100Mbps RJ-45 copper to Fast Ethernet 100Base-FX WDM singlemode/singlecore fibre (SC connector, 20, 40 and 60Km range). All models in the RC-2002 Series operate with wirespeed packet forwarding performance, and provide an SNMP agent, web-based management and Telnet/CLI text-based management. Network administrators can logon to the Converter to monitor, configure and control the activity of each port. All models offer a rich feature set, including bandwidth rating management, RMON Counter support for port traffic monitoring, 802.3ah OAM functions, 802.1q Tagged VLAN, 'Far End Fault' mode LFP (Link Forward Propagation), case intrusion, power voltage and temperature detection, external loop-back capability, broadcast storm filtering, detection of single fibre disconnection, user login management, TFTP on-line upgrade, and many other features.
| • | Wirespeed Fast Ethernet packet forwarding performance with all RC-2002 Series Converters | |
| • | Models for 100Base-TX copper to 100Base-FX multimode fibre applications | |
| • | Models for 100Base-TX copper to 100Base-FX singlemode fibre applications | |
| • | Models for 100Base-TX copper to 100Base-FX WDM singlemode/singlecore fibre applications | |
| • | ST and SC Fast Ethernet fibre port interfaces | |
| • | 10/100Mbps auto-negotiation on RJ-45 copper port | |
| • | Maximum fibre link range - 60 kilometres | |
| • | Powerful monitoring, configuration and control management features | |
| • | Web, Telnet, CLI and SNMP management interfaces | |
| • | 'Far End Fault' mode Link Forward Propagation support | |
| • | 802.3ah OAM "Ethernet in the First Mile" functions including 'Dying Gasp' messaging | |
| Standards Compliance | |
| • | IEEE 802.3 10Base-T specification |
| • | IEEE 802.3u 100Base-TX specification |
| • | IEEE 802.3u 100Base-FX fibre specification |
| • | IEEE 802.3x full-duplex flow control specification |
| • | IEEE 802.1p Priority Tag |
| • | IEEE 802.1q Tagged VLAN |
| • | IEEE 802.3ah OAM "Ethernet in the First Mile" |
| Performance | |
| • | Wirespeed packet forwarding |
| Interface/Protocol/Cable/Wavelength/Range Specifications | |
| This Model | |
| • | RC-2002BS5.S60: RJ-45 100Base-TX to SC 100Base-FX WDM, 9/125 singlemode/core, 1550nm Tx, 60Km max |
| Other RC-2002 Series Models | |
| • | RC-2002BST: RJ-45 100Base-TX to ST 100Base-TX 50/125 or 62.5/125 multimode, 1310nm, max range 2Km |
| • | RC-2002BSC: RJ-45 100Base-TX to ST 100Base-TX 50/125 or 62.5/125 multimode, 1310nm, max range 2Km |
| • | RC-2002BSC.S05: RJ-45 100Base-TX to SC 100Base-FX 9/125 singlemode, 1310nm, max range 5Km |
| • | RC-2002BSC.S20: RJ-45 100Base-TX to SC 100Base-FX 9/125 singlemode, 1310nm, max range 20Km |
| • | RC-2002BSC.S40: RJ-45 100Base-TX to SC 100Base-FX 9/125 singlemode, 1310nm, max range 40Km |
| • | RC-2002BSC.S60: RJ-45 100Base-TX to SC 100Base-FX 9/125 singlemode, 1310nm, max range 60Km |
| • | RC-2002BS3.S20: RJ-45 100Base-TX to SC 100Base-FX WDM, 9/125 singlemode/core, 1310nm Tx, 20Km max |
| • | RC-2002BS5.S20: RJ-45 100Base-TX to SC 100Base-FX WDM, 9/125 singlemode/core, 1550nm Tx, 20Km max |
| • | RC-2002BS3.S40: RJ-45 100Base-TX to SC 100Base-FX WDM, 9/125 singlemode/core, 1310nm Tx, 40Km max |
| • | RC-2002BS5.S40: RJ-45 100Base-TX to SC 100Base-FX WDM, 9/125 singlemode/core, 1550nm Tx, 40Km max |
| • | RC-2002BS3.S60: RJ-45 100Base-TX to SC 100Base-FX WDM, 9/125 singlemode/core, 1310nm Tx, 60Km max |
| RJ-45 Port | |
| • | 10/100Mbps throughput |
| • | NWay auto-negotiation |
| • | Auto-MDIX |
| • | Full/Half-Duplex transmission |
| • | Hot-swap and auto reload configuration ability |
| Fibre Optic Ports | |
| Multimode and Singlemode Models | |
| • | 100Mbps throughput |
| • | Auto-negotiation |
| • | Transmission: Full-duplex only |
| • | Hot-swap and auto reload configuration ability |
| Singlemode WDM Models | |
| • | 100Mbps throughput |
| • | Auto-negotiation |
| • | Transmission: Full-duplex only |
| • | hot-swap and auto reload configuration ability |
| • | Single core of singlemode fibre cable used |
| • | TX and RX 1310/1550nm datastreams multiplexed on a single fibre core |
| • | A pair of RC-2002BS3.S20/S40/S60 & RC-2002BS5.S20/S40/S60 Converters must be used at either end of fibre link or: |
| • | RC-2002BS5.S20/S40/S60 (1310 Tx) or RC-2002BS5.S20/S40/S60 (1550 Tx) and a comparable device at other end of link |

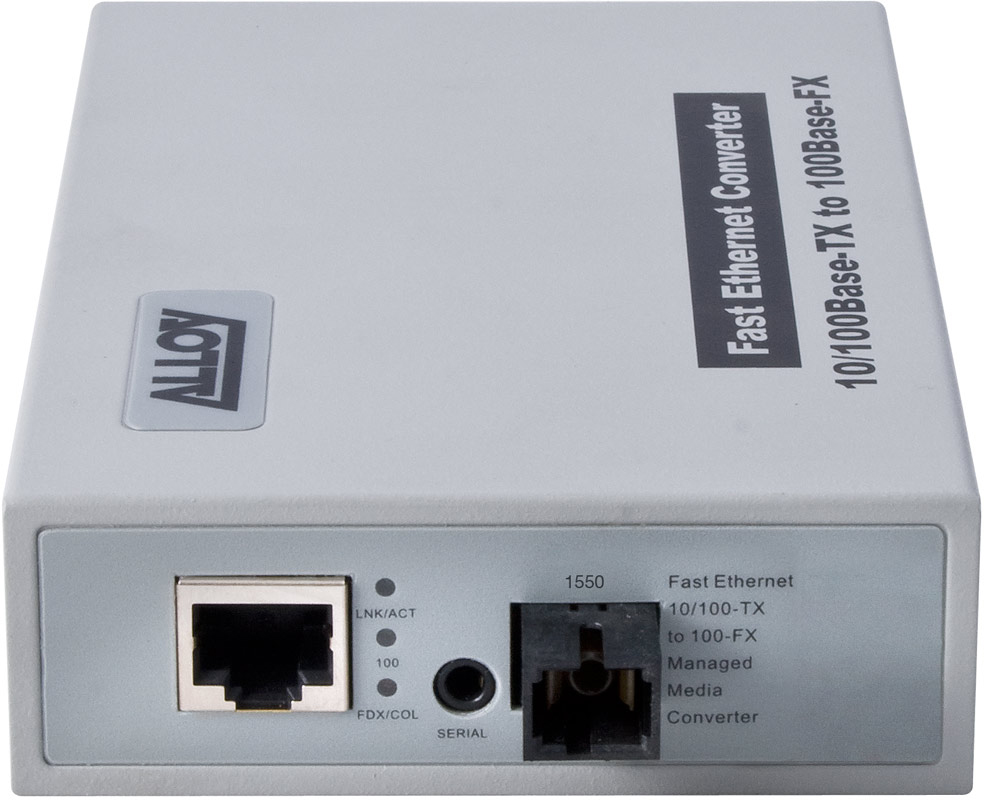

| LED Indicators | |
| • | PWR: Green, lit when +5V power source active |
| • | CPU/LOOP: Green, Lit - device CPU running; Blink - Loopback test active |
| • | FX LNK/ACT: Green, Lit - fibre port connection good; Blink - traffic is present |
| • | TP LNK/ACT: Green, Lit - TP connection is good; Blinks - traffic is present |
| • | TP Speed: Green, Lit - 100Base-TX is good; Off - 10Base-T is good |
| • | TP FDX/COL: Yellow, Lit - TP full-duplex mode active or TP Collision in half-duplex mode |
| Management | |
| Physical interface | |
| • | RS-232 Serial, DIN Jack (front panel) |
| Management Interfaces | |
| • | Web management, SNMP Agent, Telnet, CLI |
| Management Features | |
| • | TP and Fibre port raw data montitoring; Counters for: Rx/Tx Packet, Rx/Tx Byte, Error, Collision, Tx/Rx Speed (bps) |
| • | RMON counters for port traffic quality monitoring function |
| • | Supports per port bandwidth rating, ingress and egress rate limit 100Mbps with 1Mbps granularity |
| • | 802.3x Flow Control for full-duplex ports and backpressure for half-duplex ports |
| • | Supports firmware upgrade |
| • | Loopback Testing |
| • | System Information (Serial number, MAC Address, Model Name) |
| • | Media type, connector, wavelength and distance status |
| • | Maximum packet length: 1916 bytes |
| • | 802.3ah OAM "Ethernet in the First Mile" functions |
| • | 'Dying Gasp' message Customer Premises Equipment (CPE) OAM function |
| • | IEEE 802.1q Tagged VLAN |
| • | Q-in-Q Double Tag VLAN (Tag/Untag) |
| • | Supports converter mode (Block Pause frame 01-80-c2-00-00-01 and supported L2 protocol) |
| • | Supports LFP (Link Forward Propagation) LED status control (Far End Fault mode) |
| • | P/IP-less mode selectable |
| • | Broadcast Storm Filtering |
| Power | |

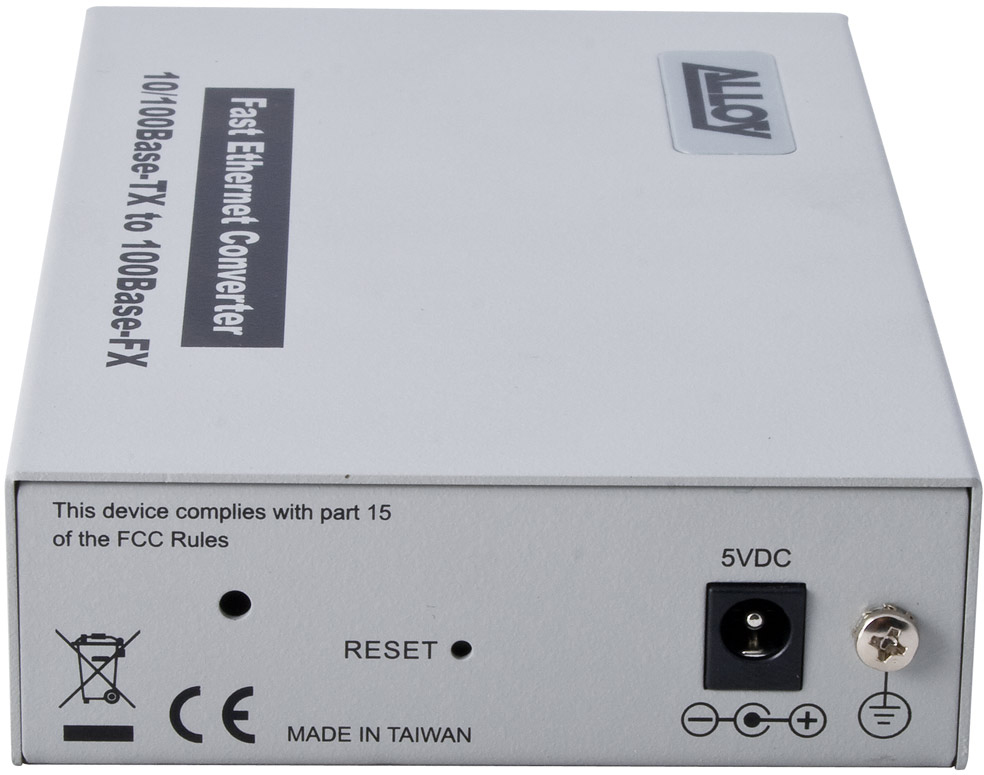

| • | 0.8A@5VDC External Power Adapter (supplied) |
| • | Maximum consumption: 4W |
| Electromagnetic Compatibility | |
| • | FCC Part 15 Class A, CE Mark, C-Tick |
| Mechanical | |

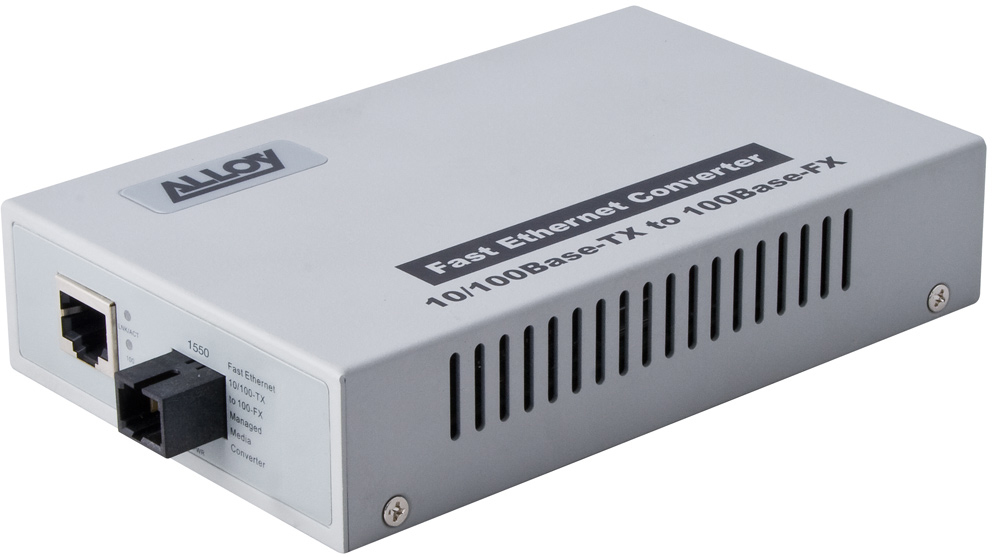

| • | Form Factor: Standalone Desktop all-metal case |
| • | Dimensions: 135.6mm x 66.8mm x 29.4mm (D x W x H) |
| • | Weight: 400 grams |
| Environmental Specifications | |
| • | Temperature: 0° to 50°C (Standard Operating) |
| • | Humidity: 5% to 90% (Standard operating) |
