Sony

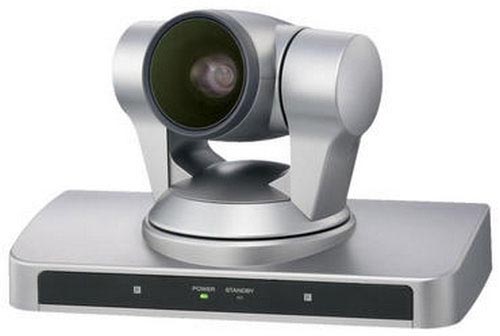

RM-HDCAM-SN-HD7
HD Video Conference Camera 1080P30/60 or 720P30/60, PTZ
The EVI-HD7V produces stunning HD images at up to 1080p/60, delivering intricately detailed, true-to-life images of a quality demanded by your full HD Video Conference/Telepresence system.
Sony, the world's leading robotic camera manufacturer, has strengthened its leadership position in High Definition PTZ solutions with the release of an affordable High Definition camera, the EVI-HD3V.
All models in the EVI-HD Series utilise a direct drive motor mechanism for achieving highspeed, quiet, and smooth PTZ operations to capture images. These cameras cover a wide shooting range, ideal for capturing extensive areas where face-to-face discussions are critical. The face-to-face experience is enhanced by the unique quiet operation of the direct drive pan/tilt mechanism.
Sony's EVI-HD Series cameras support applications that utilise standard definition, 720p, 1080i, or 1080p signaling modes, and are ideal solutions for video conferencing and Telepresence applications. EVI-HD Series cameras are an approved third party device for use in conference room systems utilising a VidyoRoom HD-100 or the VidyoRoom HD-220 Appliances.
All models in the EVI-HD Series utilise a direct drive motor mechanism for achieving highspeed, quiet, and smooth PTZ operations to capture images. These cameras cover a wide shooting range, ideal for capturing extensive areas where face-to-face discussions are critical. The face-to-face experience is enhanced by the unique quiet operation of the direct drive pan/tilt mechanism.
Sony's EVI-HD Series cameras support applications that utilise standard definition, 720p, 1080i, or 1080p signaling modes, and are ideal solutions for video conferencing and Telepresence applications. EVI-HD Series cameras are an approved third party device for use in conference room systems utilising a VidyoRoom HD-100 or the VidyoRoom HD-220 Appliances.
| • | Superb Picture Quality - utilising a 1/3-type HD CMOS | |
| • | Multi-Format Video Outputs - including full HD 1080p/60 (model EVI-HD7V) or 720p/60 (model EVI-HD3V) | |
| • | Direct Drive Motor Mechanism - for highspeed, quiet, and smooth PTZ operations | |
| • | 10x optical zoom lens, with fast and stable auto-focus | |
| • | DVI-I interface that is designed to maximise high video quality | |
| • | RS-232C Remote Control (VISCA™ Protocol) | |
| • | Six Position Presets | |
| • | Customisable Settings via On-screen Menu using IR Remote Commander® Unit | |
| • | Tested for use with Vidyo HD-220 and HD-100 Room Systems | |
| Image Sensor | |
| • | 1/3-type CMOS |
| Signal system | |
| • | 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/60 |
| Camera and Lens Specifications | |
| • | Lens: 10x optical zoom, 40x with digital zoom, f=3.4 to 33.9 mm, F1.8 to F2.1 |
| • | Exposure control: Auto*/Manual/Priority AE*/Exposure compensation/Bright |
| • | Minimum illumination: 15 lx (50 IRE, F1.8) |
| • | Focus system: Auto or Manual |
| • | Horizontal viewing angle: 8° (tele) to 70° (wide) at HD signal output |
| • | Minimum object distance: 100mm (wide) |
| • | Shutter speed: 1/60 to 1/10,000 sec. (60Hz system), 1/50 to 1/10,000 sec. (50Hz system) |
| • | Gain: Auto/Manual (-3 to +18 dB) |
| • | White balance: Auto/Indoor/Outdoor/One push auto/Manual |
| • | Signal to Noise Ratio: 50 dB |
| PTZ Specifications | |
| • | Pan/Tilt: Pan: ±100° (Max. speed 300°/sec.) Tilt: ±25° (Max. speed 125°/sec.) |
| • | Position presets: 6 positions |
| Input/Output Interfaces | |
| • | Video output: DVI-I (Digital and Analogue) |
| • | Control terminal: RS-232C (8-pin mini DIN) control (VISCA) |
| Electrical Specifications | |
| • | Power requirement: 12 VDC (10.8 to 13.0 VDC) |
| • | Power consumption: Max. 26.4 Watts (at DC 12 V) |
| Environmental Specifications | |
| • | Operating temperature: 0° to 40°C |
| • | Storage temperature -20° to 60°C |
| Physical Specifications | |
| • | Dimensions: 250x152x135mm (WxHxD, without protrusions) |
| • | Weight: Approx. 1.5 kg |
| Supplied Accessories | |
| • | AC adaptor, AC power cable, IR remote commander unit, Operating instructions |
