This product has been discontinued by Alloy.

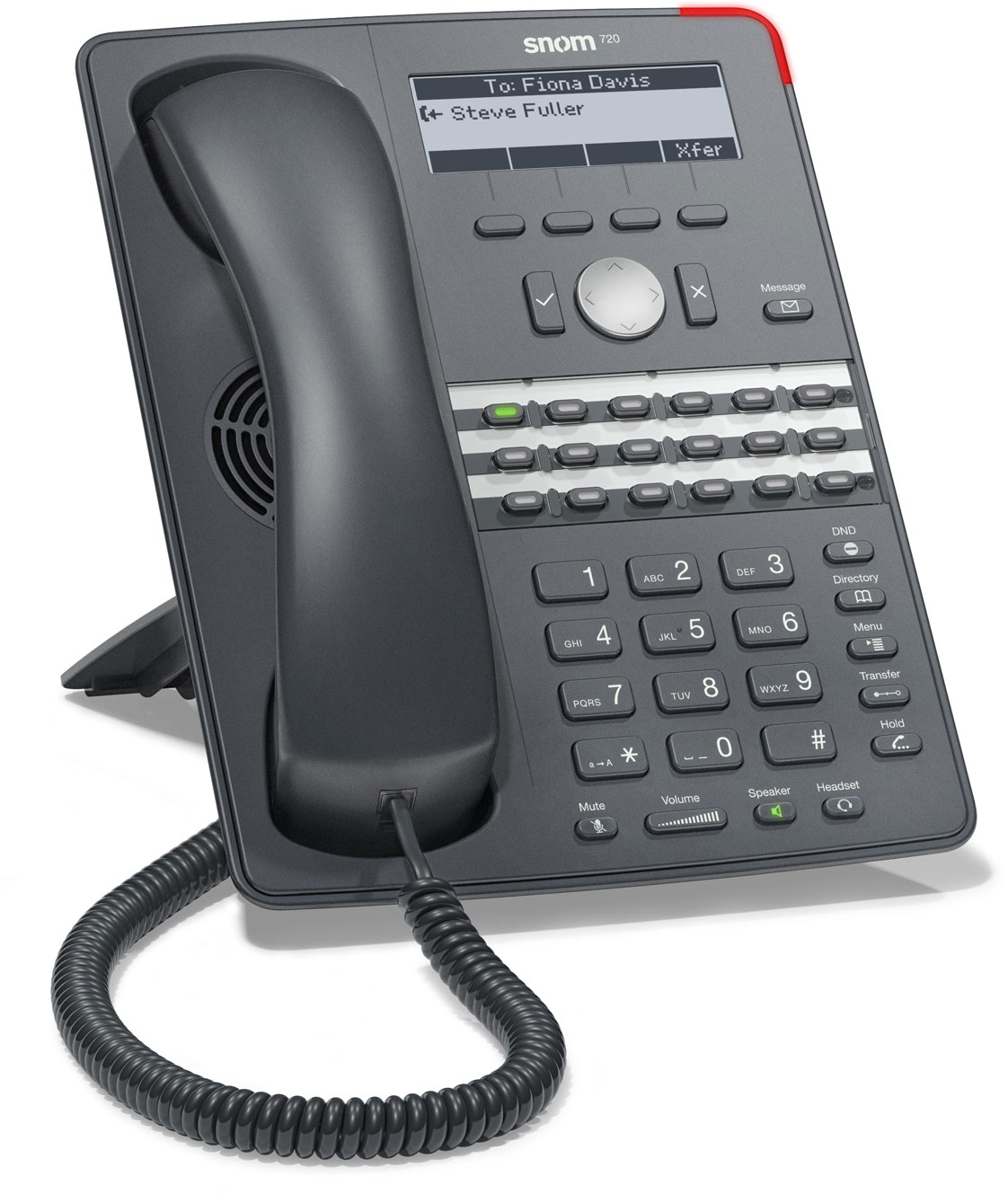

The snom 720 phone addresses office users that require excellent audio and a large number of programmable PBX-style keys. It combines state-of-the-art hardware with the proven snom SIP software.
The new foot stand allows two positions for the device (33° and 55° angle). It can be setup and changed easily without tools. The snom 720 comes in a dark grey color that fits the typical office dress code and makes usage traces less obvious than lighter colors.
For network connectivity, the snom 720 comes with two Gigabit Ethernet ports, one of them suitable for Power over Ethernet. The Ethernet ports are connected to an internal switch that is capable of VLAN tagging, so that an external PC can reside in a different VLAN than the phone.
A USB type A connector can be used to expand the functionality of the snom 720. An optional USB stick can be used to connect the phone over Wireless LAN or enable Bluetooth headsets.
The 4-line B/W display displays caller-ID and other call-related information. Its fully graphic capability makes it possible to show international characters and render content generated from the built-in mini-browser.
Three rows of general-purpose keys with 18 two-color LEDs can be used to implement functions known from traditional PBX systems. Examples include speed dial, busy lamp field (BLF), shared line appearances (SLA), redirection, door opening, and many more features depending on the PBX system used.
Like all snom desktop phones, the snom 720 comes with software that has been used in many installations over the last decade. Configuration can be done manually through the built-in web server or through automatic provisioning. There are extensive management and reporting tools available, such as RTCP-XR or PCAP. Customization can be done in various ways, such as the snom mini-browser protocol.
The phones come with a preinstalled certificate signed by the snom certificate authority which makes it possible to securely provision the phone without manual interaction. In addition to the traditional provisioning mechanisms, it comes with TR 069 for easy deployment in carrier environments.
|•||4-line B/W display|
|•||18 LED function keys|
|•||Power over Ethernet (PoE)|
|•||WLAN / Bluetooth Headset ready|
|•||2 x Gigabit LAN ports|
|•||Weight, with footstand: approx. 900g, without footstand: approx. 670g|
|•||Certifications: FCC Class B, CE Mark, A-Tick|
|•||Power consumption: 2.8–4.3 W|
|•||1 x LAN, 1 x PC: RJ45 (Ethernet)|
|•||Power 5V DC|
|•||Ethernet: 2 x IEEE 802.3/1 Gigabit Switch|
|•||Power over Ethernet: IEEE 802.3af, Class 2|
|•||Handset: RJ-4P4C connector|
|•||Headset: RJ-4P4C connector|
|•||USB Ports: Type A Hi/Full/Low Speed host interface|
|•||Colour: Anthracite Grey|
|•||G.711 a-law, µ-law|
|•||G.722, G.723.1, G.726, G.729AB, GSM 6.10 FR|
|•||Comfort noise generation (CNG)|
|•||Voice activity detection (VAD)|
|SECURITY, QUALITY OF SERVICE|
|•||Transport Layer Security (TLS)|
|•||SRTP (RFC 3711), SIPS, RTCP, VLAN (IEEE 802.1X)|
