Snom

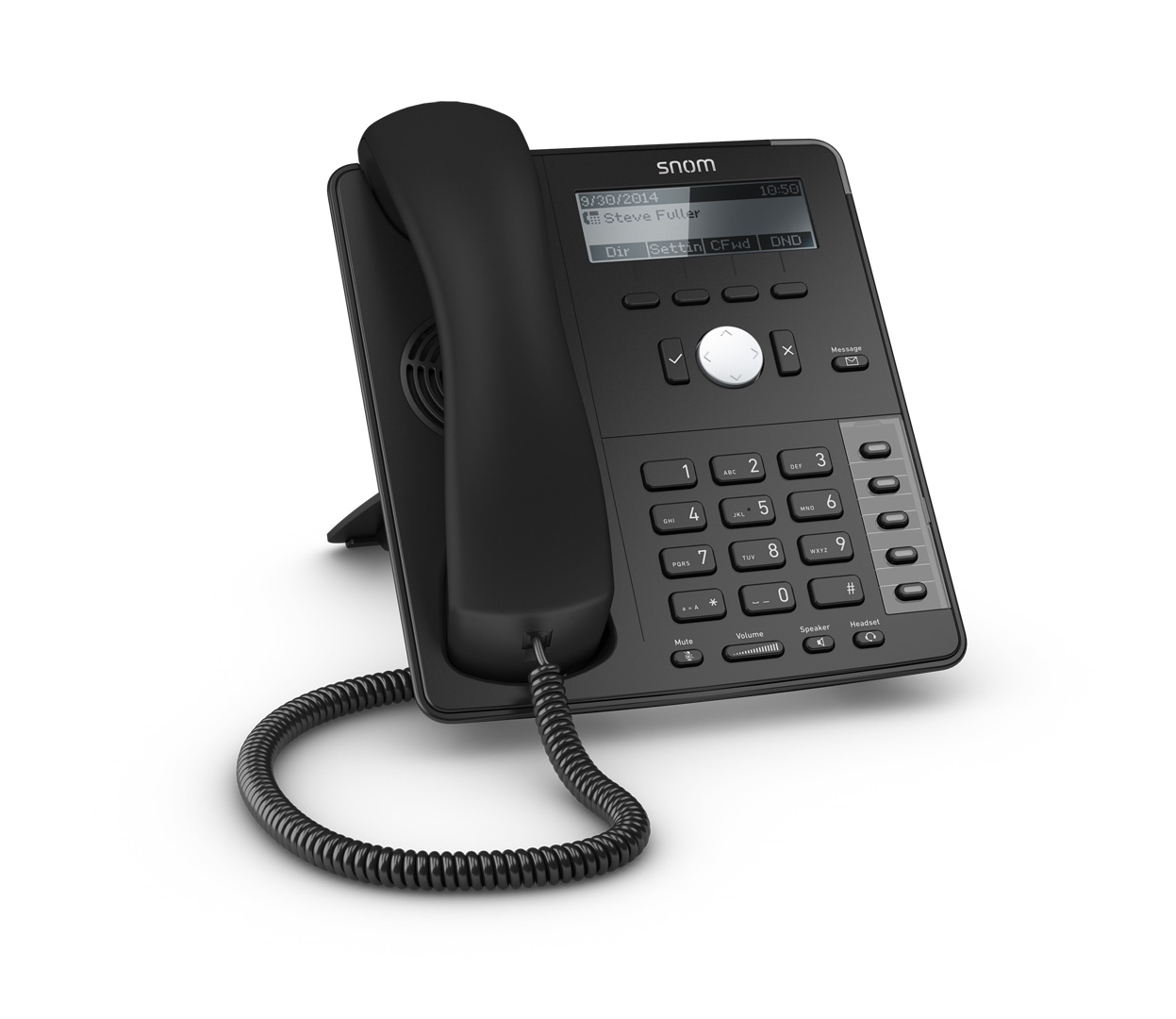

SNOM-D710
4 Line/Display Professional IP Phone, 10/100 port. 4 context-sensitive function keys. Wideband audio
The D710 is built from the ground up for HD audio. Its ergonomically designed handset has an advanced speaker and microphone system. Four SIP identities make the D710 flexible to use in demanding environments.
The D710 features a four-line black and white graphical display. The four context-sensitive keys and an intuitive, user-friendly menu, makes using the D710 easy.
Five programmable function keys with built-in LEDs for visual call indication can be configured for a variety of one-touch telephony functions such as speed dial, busy lamp field or presence indication.
Using a preinstalled certificate, the D710 supports the latest VoIP security protocols to ensure secure communications.
Advanced remote management and provisioning capabilities make the D710 an ideal endpoint for service providers of hosted VoIP deployments as well as larger-scale installations.
Four SIP identities make the D710 flexible to use in demanding environments.
The D710 is the perfect phone for everyday business telephony.
| • | Wideband audio | |
| • | 4-line backlit display | |
| • | 4 context sensitive keys | |
| • | 5 configurable function keys with LEDs | |
| • | 4 SIP identities | |
| Benefits | |
| • | Backlit graphical display, 4 lines |
| • | Dual-angle footstand: 46° and 28° |
| • | Wall mountable |
| • | Hands-free talking (speakerphone) |
| • | Digital Signal Processor (DSP) enhanced audio quality |
| • | 2-port 10/100 Mbps Ethernet switch (RJ45) |
| • | Power over Ethernet IEEE 802.3af, Class 1 |
| • | Electronic Hook Switch (EHS)(1) support for wireless headsets |
| Audio | |
| • | G.711 A-law, µ-law |
| • | G.722 (wideband) |
| • | G.726, G.729AB, GSM 6.10 (FR) |
| • | Built-in assignable ringtones |
| • | Comfort Noise Generator (CNG) |
| • | Voice Activity Detection (VAD) |
| User Interface | |
| • | Localization (language, time, dial tone) |
| • | Red LED for call indication / message waiting |
| • | 4 context sensitive keys |
| • | 5 programmable line / function keys with green LEDs |
| • | Paper inlay for labeling of function keys |
| • | Dedicated message key |
| • | Audio keys with LED indication: Mute, speakerphone, headset |
| • | Volume key |
| • | 4-way navigation key |
| • | OK and Cancel |
| • | Menu-driven user interface |
| Dimensions | |
| • | 205 x 185 x 40mm (LxWxD) w/o footstand |
| • | 205 x 185 x 200/220mm (LxWxD) with footstand |
| Weight | |
| • | device 440g, footstand 120g |
| Environmental | |
| • | Ambient temperature: 0°C to 35°C (32°F to 95°F) |
| • | Storage temperature: -10°C to 45°C (14°F to 113°F) |
| • | Humidity: 5% to 95% (non-condensing) |
