Yealink
VC400
Video Conferencing System for Head Office, Full HD, 4 Port MCU, 18x PTZ camera
The Yealink VC400 is the latest innovative 1080P full-HD video conferencing system designed specifically for head office use.
This system supports both H.323 and SIP protocols ensuring compatibility with mainstream video conferencing systems. The VC400 is equipped with an 18X optical PTZ camera so that users can enjoy 4-site 1080P full-HD video conferencing, as well as 1080P content sharing.
The VC400 also supports dual displays, USB recording and playback. With superior video and audio quality, the VC400 is definitely the best choice for your business video conferencing requirements.
| • | 4-site 1080P full-HD multipoint control unit (MCU) | |
| • | 18x optical zoom PTZ camera | |
| • | Microphone arrays with 360 degree voice pickup | |
| • | H.264 high profile, saving 50% bandwidth | |
| • | Yealink intelligent firewall transversal | |
| • | Video recording and playback | |
| • | Dual displays and ‘focus’ feature | |
| • | High compatibility and interoperability | |

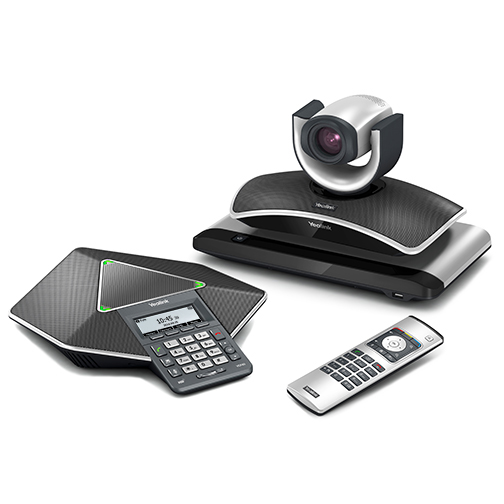

| System Components | |
| • | Codec VC400 |
| • | VCS Phone VCP40 |
| • | HD PTZ Camera VCC18 |
| • | Remote control VCR10 |
| Full-HD Camera | |
| • | 1920x1080 video resolution |
| • | Up to 18x optical zoom PTZ camera |
| • | Pan angle range: ±100° |
| • | Tilt angle range: ±30° |
| • | Up to 10 preset position |
| • | Beauty shot feature |
| MCU Processing Capacity | |
| • | 4-site 1080P/8-site 720P (Pending) |
| • | Additional 1-way audio call |
| • | Mixed protocols, codecs, bandwidth, resolution and frame rate |
| Video Resolution | |
| • | Full HD 1080P at 30fps (1920x1080), from 1Mbps |
| • | 720P (1280x720), from 521Kbps |
| • | W448P (768 x 448),WQVGA (400 x 240) |
| • | 4CIF (704×576), CIF (352 x 288) |
| Audio Features | |
| • | 3-microphone array |
| • | 10ft/3-metre and 360 degree voice pickup |
| • | Optional 2 expansion microphones, enhancing voice pickup to 16ft/5-metres |
| • | Audio Codecs: G.722 (7KHz),G.722.1,G.722.1C,G.711 u/a |
| • | Audio technology: AEC, VAD, CNG, PLC, AJB, AGC |
| Other Physical Features | |
| External universal AC adapter: | |
| • | AC 100~240V input and DC 19V/3.42 Output |
| Power consumption (PSU): | |
| • | Idle<2.8W, normal operating: 24W; MAX: 30W |
| Dimension (W*D*H): | |
| • | Codec: 330mm*183mm*40mm |
| • | Phone: 320mm*260m*52mm |
| • | Camera: 282mm*152mm*159mm |
| • | Remote control: 190mm*55mm*24mm |
| Operating humidity: | |
| • | 10~95% |
| Storage temperature: | |
| • | -10~50°C |
