Minrray
VHD-A910-B

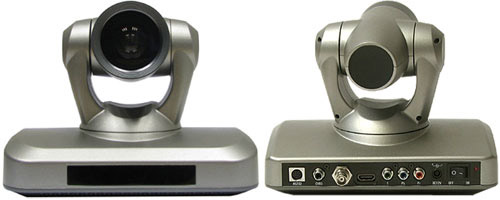

High Definition Video Conference Camera 1920x1080, PTZ, 10x Zoom, Wide Angle Lens
The VHD-A910S-B is a Super High Definition Video Conferencing Camera which supports up to 1920 x 1080 pixel video resolution - ideal for systems that support HD video conferencing at 1080p/30fps or 720p/60fps.
The camera has a 1/2.5 inch, 2.5 Million pixel HD CMOS transducer and its feature set includes 10x optical zoom, PTZ, 10 preset camera positions, and a multi-function remote controller.
Available in black or silver, Minrray VHD-910S-B and VHD-A910-B cameras can be used in combination with a wide range of codecs and video conference systems to produce high-quality, high resolution images. Minrray cameras are an approved third party device for use in conference room systems utilising a VidyoRoom HD-100 or the VidyoRoom HD-220 Appliances.
Available in black or silver, Minrray VHD-910S-B and VHD-A910-B cameras can be used in combination with a wide range of codecs and video conference systems to produce high-quality, high resolution images. Minrray cameras are an approved third party device for use in conference room systems utilising a VidyoRoom HD-100 or the VidyoRoom HD-220 Appliances.
| • | Super High Definition Video - up to 1920 x 1080 | |
| • | 1080i/60, 1080p/30, 1080p/25, 720p/60, 720/30 format HD video | |
| • | 10x Optical - Fast, accurate and stable auto focus lens | |
| • | Models with wide angle (70°) or normal (52°) lens | |
| • | Wide range, high speed and low noise pan/tilt rotation | |
| • | Digital and anolog interfaces - HD-SDI, HDMI, YPbPr | |
| • | RS-232 Remote Controller - VISCA protocol | |
| • | 10 preset positions for pan, tilt, zoom, focus position, exposal mode and white balance | |
| • | Multi-Function Handheld IR Remote Commander Unit | |
| • | Tested for use with Vidyo HD-220 and HD-100 Room Systems | |
| Camera and Lens | |
| • | Optical Format: 1/2.5" high definition CMOS transducer |
| • | Pixels, Dynamic Image: 4:3 = 390,000 effective pixels; Dynamic 16:9 = 2.07 million effective pixels |
| • | Pixels, Static Image: 4:3 = 2.7 million effective pixels; 16:9 = 2.1 million effective pixels. |
| • | Video Signal: HD 1080p/30, 720p/60, 720p/30, 10800i/60 |
| • | Lens Zoom: 10x optical zoom, f = 4.5 - 45.0mm, F1.8-2.2 |
| • | Angle of View (farness/nearness): 3.8°/52° (model VHD-A910S-B); 5.4°/70° (model VHD-A910-B) |
| • | Wide angle lens: 0.7x wide angle lens, caliber 30mm (model VHD-A910-B) |
| • | Minimum Illumination: 10LUX |
| • | Signal to Noise Ratio: 50dB |
| Rotation Specifications | |
| • | Pan Rotation: ±100 degree |
| • | Tilt Rotation: ±30 degree |
| • | Manual Control Speed: Pan: 0.5°- 80°/sec; Tilt: 0.5°-80°/sec |
| • | Preset Speed: Pan running: 80°/sec; Tilt running: 80°/sec |
| • | Preset Positions: 10 |

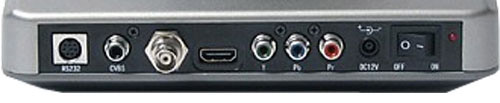

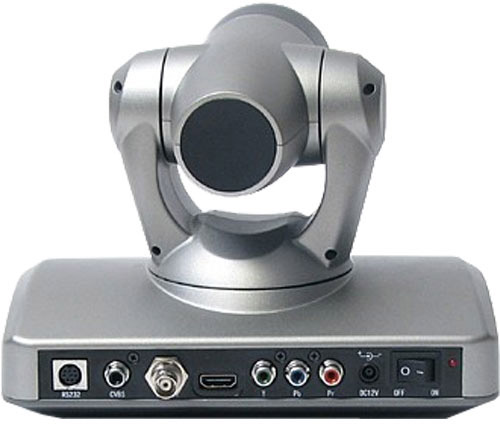

| Input/Output Interfaces | |
| • | Standard Definition Compound Video Output: RCA Jack, 1Vp-p, 75O unbalance. |
| • | High Definition Interfaces: HDMI, HD-SDI, YpbPr |
| • | Power supply Interface: HEC3800 power jack |
| Electrical Specifications | |
| • | Power Supply Adapter: 12VDC/2A |
| • | Input voltage: 12VDC (10.5-14VDC) |
| • | Input power: 18 watts maximum |
| Physical Specifications | |
| • | Dimensions: 216mm x 143mm x 140mm (width x highness x depth) |
| • | Temperature: -0? to +45? (operating); -10? to +60? (storage) |
| • | Weight: 2Kg |
