discontinued
Topex

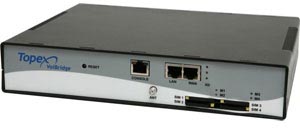

VOXI-4BRI-GSM-4
VoIP, SIP/H.323 and 4x BRI ISDN 4 Channel GSM Gateway
This product has been discontinued by Alloy.
Topex VoxiPlus is a media gateway. Its main function is to bridge between VoIP networks ISDN networks and Mobile networks.
With Topex VoxiPlus you start saving from day one after installation by reducing the cost of communications.
| • | All-in-one gateway between VoIP, ISDN and GSM/UMTS networks | |
| • | Very powerfull LCR device | |
| • | 4 x BRI interfaces | |
| • | Embedded GSM modules | |
| • | Mobility extension | |
| • | Interconnection with TDM PBXs with BRI interfaces | |
| • | Interconnection with IP PBXs based on SIP or H323 | |
| Frequency band | |
| • | Quad SIM: Quad Band GSM: 850/900/1800/1900 MHz |
| VoIP | |
| • | SIP and H.323 protocols |
| ISDN-BRI interfaces | |
| • | 4 ports-two 64 kbit/s voice channels each |
| Codec Support | |
| • | G.711 A and ì Law, G.723.1, G.729a, G.729b, G.729ab |
| Antenna | |
| • | External magnetic base antenna's with 3m long cable |
| Power supply | |
| • | AC Adapter Input: 100-240 V ac, 50/60 Hz 1A |
| • | Output: +12Vdc @ 3.34A |
| • | Power: Max 40W |
| Operating temperature | |
| • | 5 - 50 C |
| Dimensions (L xW x H) | |
| • | 200 x 260 x 50 mm |
