discontinued
Topex

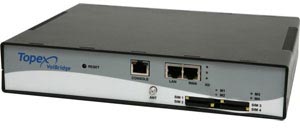

VOXI-E1-3G-12A
VoIP, SIP/H.323 and 2x PRI ISDN 12 Channel 3G Rackmount Gateway
This product has been discontinued by Alloy.
Topex VoxiPlus is a media gateway. Its main function is to bridge between VoIP networks ISDN networks and Mobile networks.
With Topex VoxiPlus you start saving from day one after installation by reducing the cost of communications.
| • | All-in-one gateway between VoIP, ISDN and GSM/UMTS networks | |
| • | Very powerfull LCR device | |
| • | 2 x E1 interfaces ( IN or OUT) | |
| • | Embedded GSM modules | |
| • | Mobility extension | |
| • | Interconnection with TDM PBXs with BRI interfaces | |
| • | Interconnection with IP PBXs based on SIP or H323 | |
| Frequency band | |
| • | Twelve SIM: UMTS: 850/1900/2100 MHz |
| VoIP | |
| • | SIP and H.323 protocols |
| E1 Interfaces | |
| • | 2 x RJ-45 connectors (E1/A and E1/B) |
| • | PCM with 30 channels, bit rate 2,048 Mbps |
| • | conforms to G.703 and G.704 ITU-T ( CCITT ) standards |
| • | A-Law and ì-law encoding |
| • | Line impedance: 75 or 120 ohms |
| Codec Support | |
| • | G.711 A and ì Law, G.723.1, G.729a, G.729b, G.729ab |
| Antenna | |
| • | External magnetic base antenna's with 3m long cable |
| Power supply | |
| • | AC Adapter Input: 100-240 V ac, 50/60 Hz 1A |
| • | Output: +12Vdc @ 3.34A |
| • | Power: Max 40W |
| Operating temperature | |
| • | 5 - 50 C |
| Dimensions (L xW x H) | |
| • | 200 x 260 x 50 mm |
