This product is no longer stocked by Alloy

ALLOY

MFCR100SC.05

Media Converter Module for MCR12 Series, 100Base-TX (RJ-45) to 100Base-FX (SC), 5Km

An MFCR100 Series Fast Ethernet Media Converter Module, the MFCR100SC.05 can be installed in an Alloy MCR12 Series Managed Media Converter Chassis, and has 1x RJ-45 and 1x 100Base-FX singlemode SC ports. Fibre cable range up to 5Km.

Description

An MFCR100 Series Fast Ethernet Media Converter Module, the MFCR100SC.05 can be installed in an Alloy MCR12 Series Managed Media Converter Chassis, and has 1x RJ-45 and 1x 100Base-FX singlemode SC ports. Fibre cable range up to 5Km.

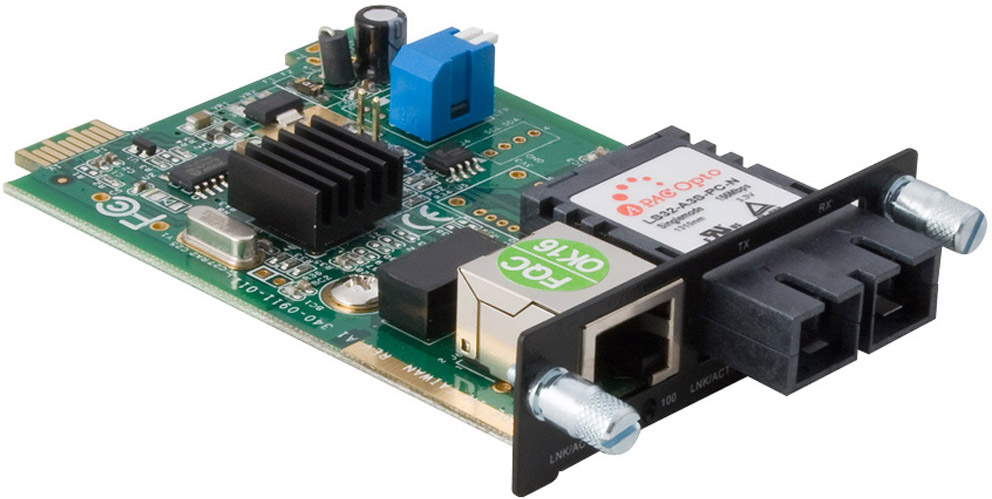

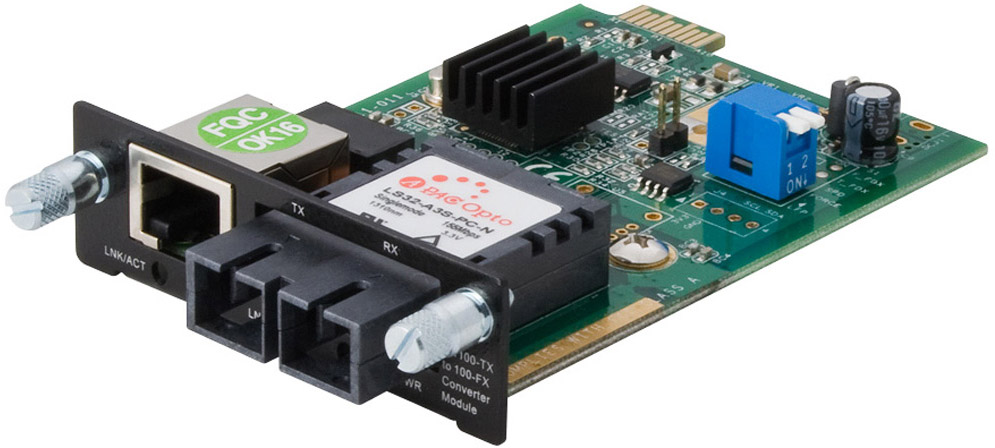

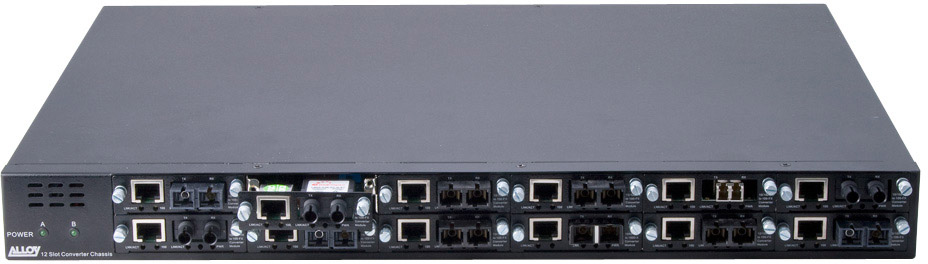

The MFCR100SC.05 Media Converter Module is designed for use in any of Alloy's MCR12 Series Managed Media Converter Chassis systems. An MFCR100SC.05 Converter Module can be installed in any of the 12 front panel slots in and MCR12 Chassis. This Converter Module has a Fast Ethernet 100Base-TX RJ-45 port and an SC terminated 100Base-FX connector, which supports a range of up to 5 kilometres over singlemode fibre cable.

The MFCR100SC.05 is a member of the MFCR100 Series of Media Converter Modules. Any combination of these cards and models from the MGCR1000 Series of Gigabit Ethernet Media Converter Modules can be installed in a MCR12 Series Managed Media Converter Chassis system. MFCR100 Series Fast Ethernet Converter Modules provide comprehensive solutions for UTP copper to multimode fibre, UTP copper to singlemode fibre and UTP copper to WDM singlemode/singlecore fibre media conversion. Individual models offer LC, SC or ST fibre connectors, and maximum fibre cable ranges between 2 kilometres an up to 60 kilometres are supported.

Installed in an MCR12 Series Media Converter Chassis, individual MFCR100 Modules can be monitored and configured via the chassis web-based GUI management interface. In addition, an SNMP agent supports the configuration of up to 23 Trap events, with exception alarms sent to specified email address or via the corporate SNMP Trap alarm system. MFCR100 Series Converter Modules provide a flexible and scalable solution for high density and high reliability for most types of Fast Ethernet media conversion.
Features
MFCR100SC.05 model for Fast Ethernet Copper to fibre media conversion - up to 5Km fibre range
MFCR100 Series models provide Fast Ethernet to singlemode or WDM singlemode solutions
LC, SC and ST fibre connector supported on individual models
Up to 60 kilometres fibre range supported on by MFCR100 Series Converter Modules
All MFCR100 Series Converter Modules are 'Hot Swap' field upgradable devices
Easy 'slide in' installation into Alloy MCR12 Media Converter Chassis systems
Supports Far-end Fault Link Fault Passthrough (LFP)
Web-based management GUI interface for Converter Module management
SNMP agent with up to 32 Trap events and alarms when installed in an MCR12 Chassis
Flexible, scalable solution for up to 12 Converter Modules
